Atoll CD80 : CD Player
The Signature Series CD players have benefited from many innovations, whether in terms of power supplies or audio and conversion stages. In addition, all of these devices can now accommodate a 24 bits/192 kHz DAC board relying on the player’s internal converter. The USB input is asynchronous.
- 4 mm brushed aluminium front.
- 8 regulated power supplies including a specific low-noise one for the converter.
- Separate 4,6 VA transformer for the audio stages.
- BURR-BROWN PCM1793 converter:
– 24 bits/192 kHz.
– Dynamic: 113 dB.
– Signal/Noise ratio: 113 dB. - Original TEAC central CD mechanics.
- Pure audio CD player compatible: CD, CD-R, CD-RW, MP3, WMA-AAC.
- Linear power supply for digital stages with a specific 30 VA transformer.
- Separate linear power supply for the audio stages.
- Double-sided circuit boards with nickel/gold finish.
- Low consumption OLED display.
- Reading the CD-Text.
- Class A biased discrete component differential audio output stages.
- Optional 24 bits/192 kHz digital board for all signature series CD players.
- ATOLL global remote control.

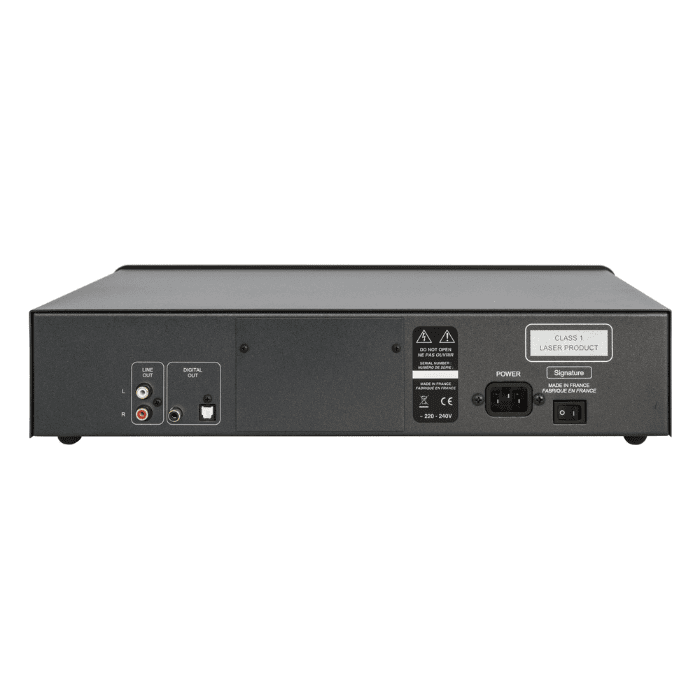

CONNECTIVITY
Outputs
1 Line output (right and left).
1 Coaxial digital output.
1 Optical digital output.
Specifications :
Power supply: 30+4,6 VA
Total of capacitors: 12 892 µF
Output level: 2,5 Vrms
Output impedance: 5,6 Ω
Converter (D/A): PCM1793
Digital Output: Coaxial & Optical
Digital input: 24 bits / 192 kHz
USB input: 24 bits / 192 kHz
Signal/Noise ratio: 113 dB
Distortion at 1 kHz: 0,001%
Bandwidth: 5 Hz – 20 kHz
Rising time: 2,0 µs
Dimensions (mm): 440×280×95
Weight: 6 Kg
