Description

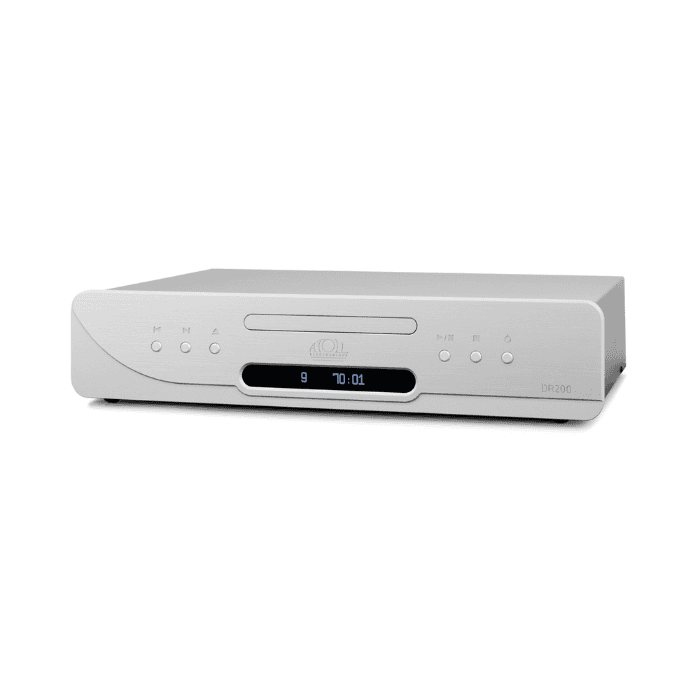

Atoll DR200 : Drive/Transport
The CD drives of the Signature series have benefited from many innovations, whether at the level of the power supplies or the digital output stages. The mechanics and the chassis have received specific anti-vibration treatment.
- 8 mm brushed aluminium front.
- Coaxial, optical and AES/EBU outputs.
- Digital signal isolation with a specific 1:1 transformer dedicated to S/PDIF and AES/EBU outputs.
- Linear power supply for digital stages with a specific 30 VA transformer.
- Specific anti-vibration treatment for CD mechanics and chassis.
- Optimized board for jitter reduction.
- Isolation of digital signals by LVDS circuit (signal reformatting).
- Original TEAC central CD mechanics.
- Pure audio CD player compatible: CD, CD-R, CD-RW, MP3, WMA-AAC.
- Double-sided circuit boards with nickel/gold finish.
- Low consumption OLED display.
- Reading the CD-Text.
- ATOLL global remote control.

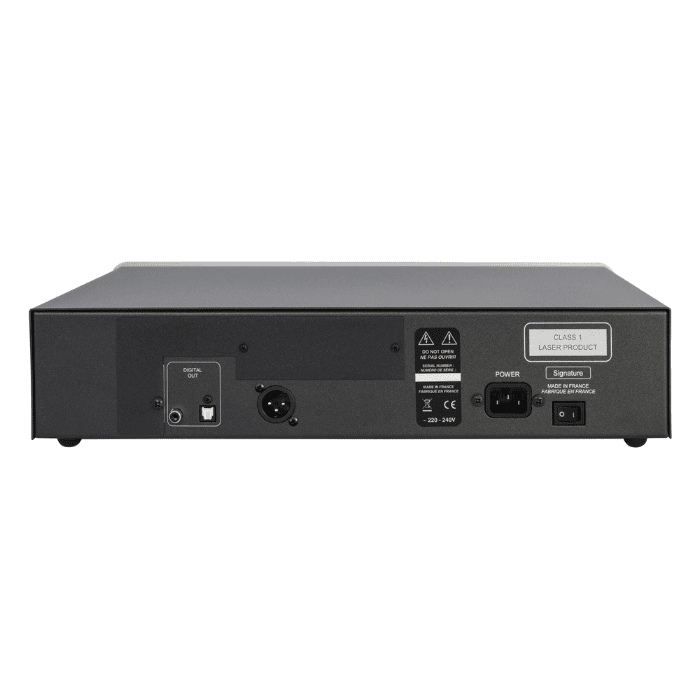

CONNECTIVITY
Outputs
1 Coaxial output on high-quality PTFE insulated connector.
1 Optical output.
1 AES/EBU output.
Specifications :
Power supply: 30 VA
Total of capacitors: 122 100 µF
Output signal amplitude: 1V
Digital Outputs: Coaxial-Optical-AES/EBU
Consumption: Standby: 3,8 W / Playback: 6 W
Dimensions (mm): 440×284×95
Weight: 7 Kg
