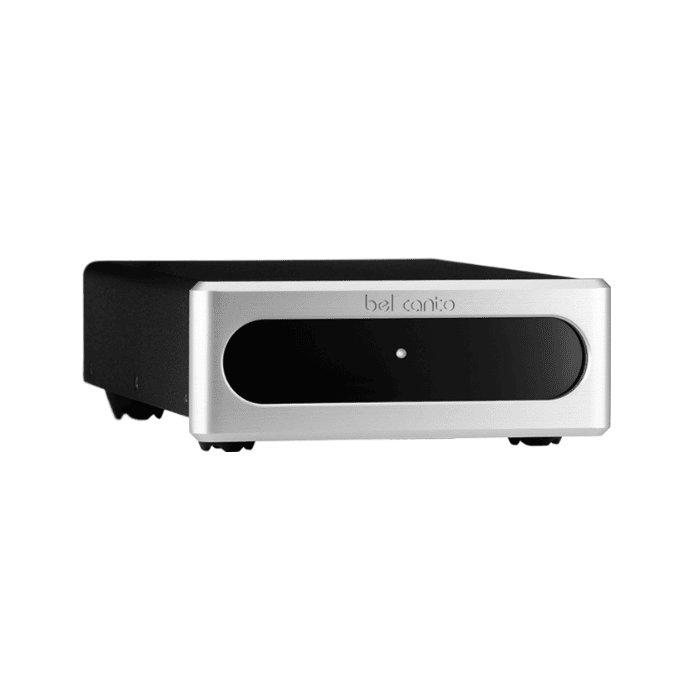

Bel Canto eOne Phono : Phono Preamplifier
The PHONO preamp will unleash tremendous dynamics and resolution to your listening experience.
DSSA, Discreet Single Stage Amplifier
This is a very fast, low noise amplifier with a single-stage folded cascode architecture and over 500mA of peak current output capability. It maintains very low constant distortion levels through the audio band because of its high open-loop bandwidth. The DSSA module brings a further element of dynamic resolution and contrast to the e.One Phono. The vertical modular design permits a tight, efficient Printed Circuit Board (PCB) layout that combines the best of IC based and discrete component design.
Gain and Resistance Customization
The PHONO can work with a wide variety of cartridges by adjusting the dip switches for gain and resistance on the back of the unit.
Specifications :
- Bandwidth: 1Hz-50KHz
- RIAA Accuracy: 20Hz-20KHz +/- 0.2 dB
- Signal to Noise Ratio 40 dB gain: >80 dB A weighted, re 5mV RMS in
- Distortion @ 2 Volt RMS/1KHz: <0.01%
- Input Impedance: Adjustable 31 to 47k (View dip switch alignment)
- Gain Level Options: Adjustable 38dB to 60dB (View dip switch alignment)
- Power On usage: 10W
- Power Off usage: 0.0W
- Internally Set Operating Voltages: 100-120VAC or 230-240VAC 50/60 Hz
- Size: 8.5 x 3.5 x 12?, 216 x 88 x 305mm (W x H x D)
- Weight: 10lbs, 4.5Kg
