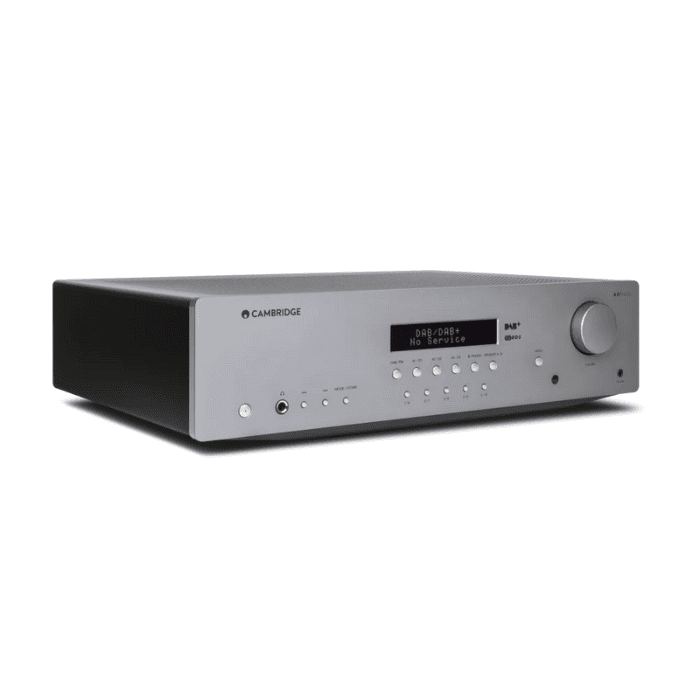

Cambridge Audio AXR100D

Description

Cambridge Audio AXR100D : Integrated Receiver/DAC/Phono/Bluethoot

With 100 watts of power and FM/AM tuner too, AXR100 is an amp to be taken seriously – thanks to an integrated phono stage for easy connection of a turntable, and Bluetooth to play music wirelessly from a smartphone. Dedicated subwoofer output for driving bass, and two sets of speaker outputs add to R100’s appeal. While plenty of sockets front and rear build on that versatility.

Specifications

• THE DETAILS

  POWER OUTPUT	100 watts (into 8Ω)
  THD (UNWEIGHTED)	<0.01% @ 1kHz, 80% of rated power <0.15% 20Hz – 20kHz, 80% of rated power
  FREQUENCY RESPONSE (-1DB)	5Hz – 50kHz
  S/N RATIO (REF 1W)	>82dB (unweighted)
  INPUT IMPEDANCES	47k ohms
  POWER AMP DAMPING FACTOR	>50
  STANDBY POWER CONSUMPTION	<0.5W
  MAX. POWER CONSUMPTION	550W
  BASS/TREBLE CONTROLS	Shelving, ultimate boost/cut +/- 10dB @ 100Hz and 20kHz
  SUBWOOFER OUTPUT	200Hz 2nd order L+R Level follows volume setting
  DIGITAL INPUTS	PCM 16-24-bit S/P DIF Co-axial 32-192kHz TOSlink Optical 32-192kHz
  DIMENSIONS	110 x 430 x 340mm (4.3 x 16.9 x 13.4”)
  WEIGHT	8.1kg (17.8lbs)
  BLUETOOTH	5.0 A2DP/AVRCP supporting SBC
  TUNER BANDS	European AM (522-1629kHz) FM (87.5-108MHz) / AM (540 – 1700kHz) FM (88 – 108MHz)
  AERIAL INPUTS	FM 75 ohms, Coaxial. AM 300 ohms wire loop/ single wire
  SIGNAL TO NOISE (TUNER)	60dB typical (FM)
  DISTORTION (TUNER)	<0.4% @ 1kHz 50kHz deviation (FM mono) <0.6% @ 1kHz 50kHz deviation (FM stereo)
  IN THE BOX	AXR100 Stereo Receiver, Power Cable, Remote Control, 2 x AAA Batteries, FM antenna, AM antenna
