Dali Opticon LCR Mk2 : Surround & Center Speaker
Dali Opticon LCR Mk2 is a wall mount centre channel speaker that is great for discrete installations in home cinema systems. It uses Dali’s innovative technology that’s featured in all of the Opticon MK2 range and houses it into an unobtrusive wall mounted cabinet.
The Opticon LCR MkII can operate in either an independent 2.0 system or in a centre channel in a larger set up.
Slim and Compact
The Opticon LCR MkII has a depth of only 128mm and has been developed to perform at it’s best from 0 – 10 cm away from the wall, which allows it to be mounted in most places in your room. Contrary to it’s small stature or wall mount accessibility, the Opticon LCR Mk2 loses no sound quality.
Bass Reflex Port

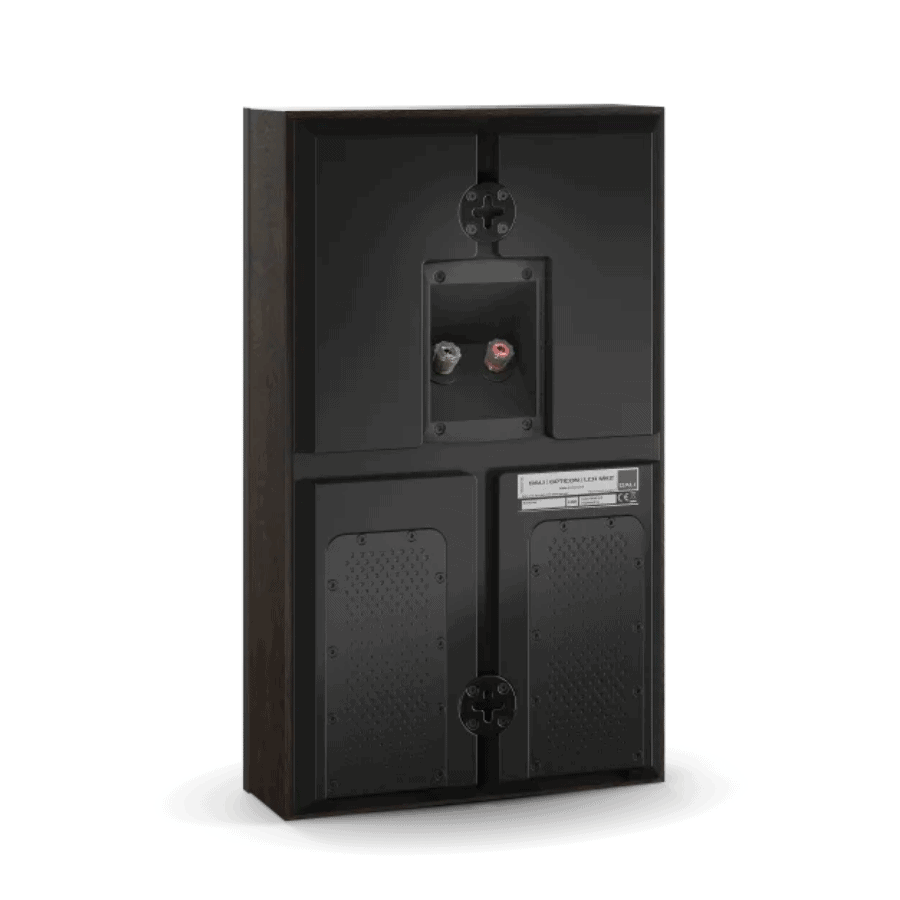

A bass reflex port has been designed to reduce distortion from the woofers and to control the time response of the roll-off from the bass system. It’s placed at the rear of the of the speaker to utilise both the space at the back of the speaker and the wall to produce a bass level not expected from such a compact unit.
Hybrid Tweeter System
Dali’s hybrid tweeter system, seen in most of the Opticon mk2 range, combines a soft dome tweeter with a ribbon tweeter to maximise the high-end potential.
Low Distortion, Low Colouration and Low Loss
The woofers continue to stay true to Dali’s sound principles of low distortion, low colouration and low-loss and are made up of the mix of paper and wood fibre that ensures low surface resonance and gives the distinctive colour.
Great Look
In keeping with the Dali theme, all components of this product are made in the Dali factory in Denmark. And with three finishes to choose from you should be able to fit it in nicely with the rest of the furniture.
Specifications :
Type
– Speaker: LCR/Centre/On-Wall
– Distance From Wall: 0 – 10cm
– Enclosure Type: Bass Reflex
Performance
– Freq Range (+/-3dB): 72-32,000Hz
– Sensitivity (2,83 V/1 m): 90.5dB
– Nominal Impedance: 4Ω
– Maximum SPL: 109dB
– Recommend Amp Power: 30 – 150W
– Crossover Freq: 2,200/14,000Hz
– Crossover Principle: 2 + ½ way
Driver
– Super HF Driver: 28mm Ribbon
– HF Driver: 6.5″ Soft Textile Dome
– MF Driver: 1x 6½ » Wood Fibre Cone
– Bass Reflex Tuning: 45.5Hz
– Connection input(s): Single Wire
General
– Incl: Manual, Rubber Bumpers
– Dimensions (HWD): 482 x 285 x 127mm
– Weight: 8.3 Kg
