Description

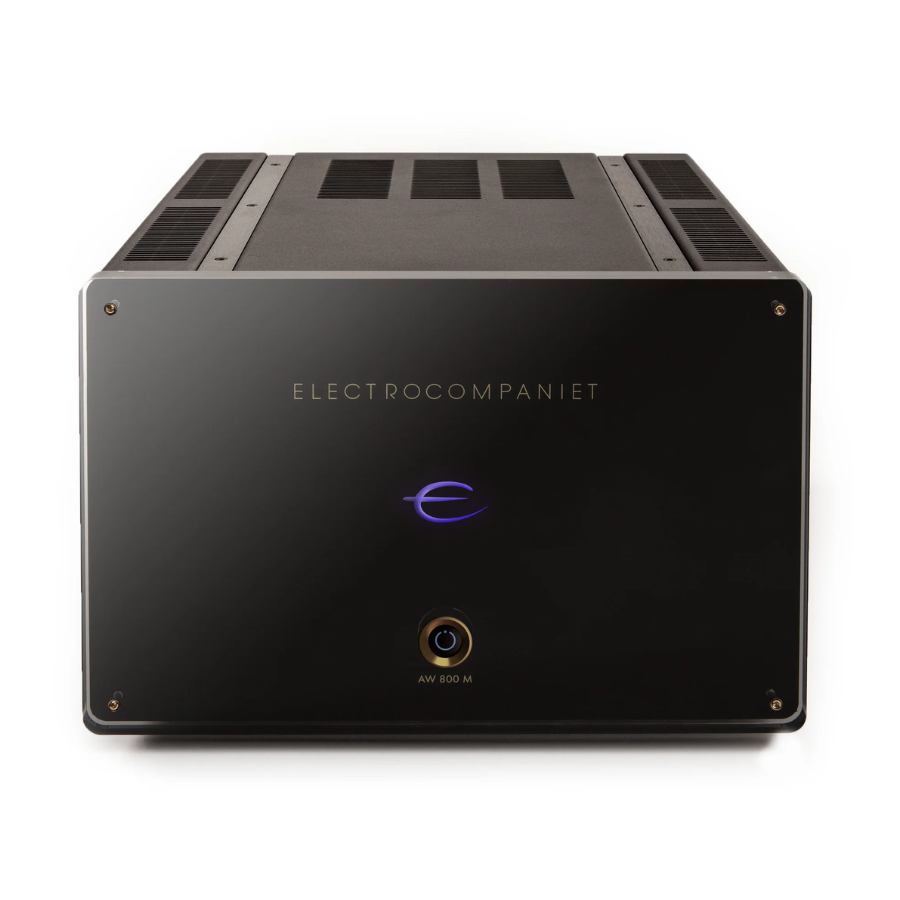

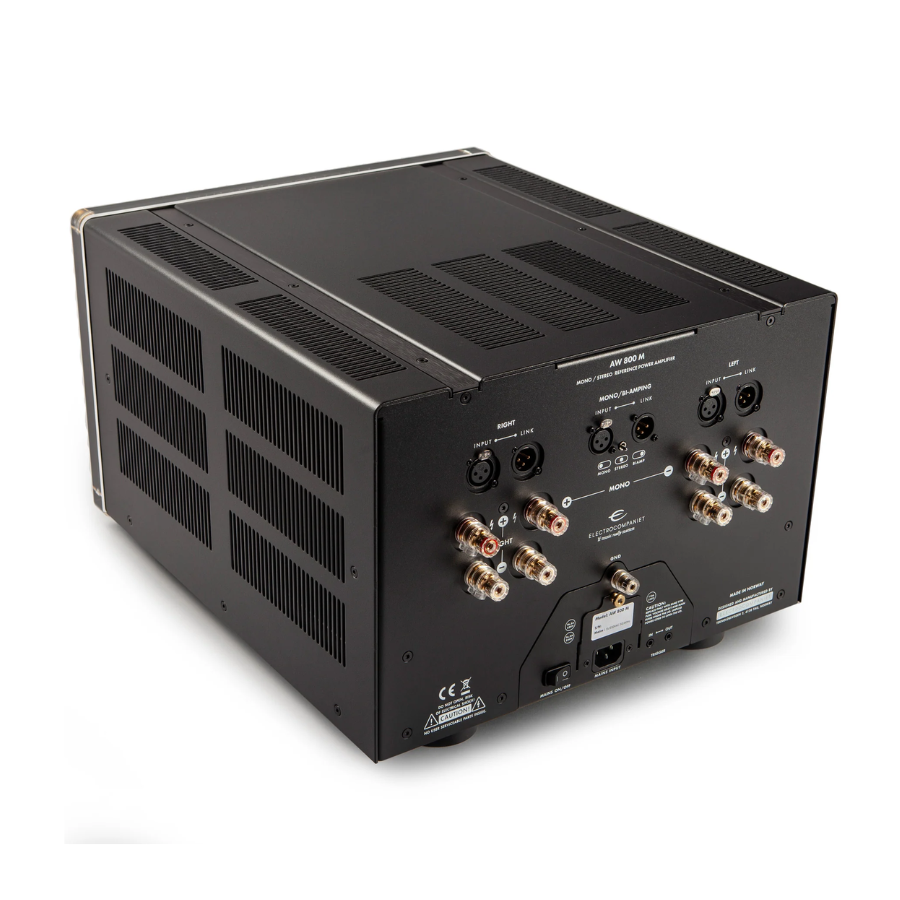

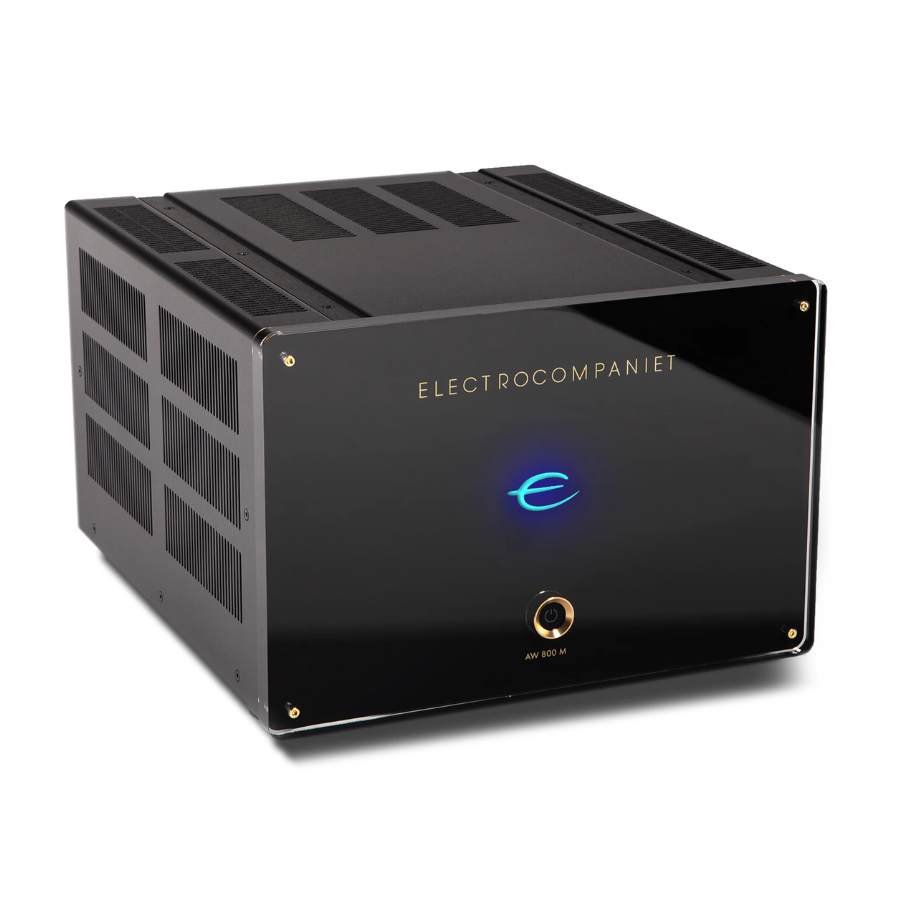

Electrocompaniet AW 800 M : Mono Power amplifier
Price for one piece
The AW 800 M is Electrocompaniet’s brand-new flagship power amplifier. It replaces the legendary AW 600 NEMO as our most powerful monoblock power amplifier. The amplifier showcases an updated, yet unmistakable and distinctive Electrocompaniet design that is a perfect match for all current and legacy Electrocompaniet products.
Specifications :
| Input impedance: 330 kΩ |
| Frequency resp. (in. filter active):0.5 – 220 kHz |
| Frequency resp. (in. filter dis.): 0.5 – 1.1 MHz |
| Voltage gain (mono, bal. input): 35 dB (x56) |
| Voltage gain (stereo, bal. input): 29 dB (x28) |
| Input-referred noise (20-20kHz): < 2 μV |
| SNR (ref. 1W/8Ω load, 20-20 kHz): 95 dB |
| SNR (ref. full power out, 20-20 kHz): 122 dB |
| Slew-rate (input filter disabled): 270 V/μs |
| DC output voltage: < 5 mV |
| THD+N: 0.0006 % |
| IMD: 0.001 % |
| Damping factor (8Ω load): > 1000 |
| Power consumption standby: < 0.5W |
| Protection: DC, overload, temperature |
RATED OUTPUT POWER STEREO: |
| 8Ω load: 2 x 300 W |
| 4Ω load: 2 x 600 W |
| 2Ω load: 2 x 1000 W |
RATED OUTPUT POWER MONO: |
| 8Ω load: 800 W |
| 4Ω load: 1500 W |
| 2Ω load: 2200 W |
WEIGHT & DIMENSIONS: |
| Weight: 55 kg – 122 lbs |
| Width: 406 mm – 15.98 inches |
| Depth: 488 mm – 19.21 inches |
| Height: 292 mm – 11.49 inches |
