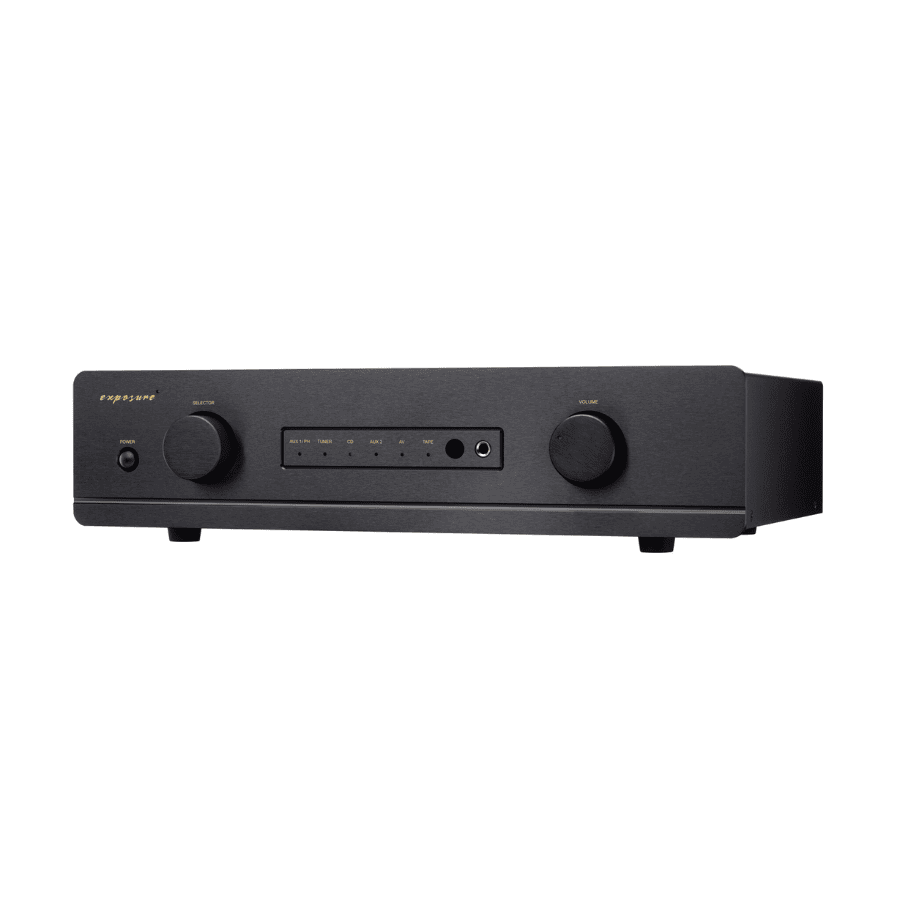

Exposure 3510 Integrated : Integrated Amplifier
The new Exposure 3510 integrated amplifier replaces the previous model and provides additional features and a performance boost over the already highly rated and revered 3010s2D.
Features:
- 110W RMS per channel into 8 Ohms
- Six line inputs
- Option to fit a MC or MM phono module OR plug in DAC option
- Bi-wiring compatible
- Separate preamp output
- High quality capacitors used in the signal path
- Uniquely tuned short signal and power supply path PCB
- Cascode circuitry utilised for improved power supply immunity
- Fast bipolar transistor output stage for dynamic and vivid performance
- All aluminium casework and extruded front panel to control resonance and stray electromagnetic fields
- Remote control
- Three year guarantee
- Available in black or titanium
Expansion Cards:
DAC Board: All discrete transistor output stage
- High quality parts used throughout
- Tight tolerance parts used for analogue filtering
- Low noise audio stage power supply regulators
Phono Card MM/MC: All discrete transistor audio stages
- High quality parts used throughout
- Tight tolerance parts used for accurate equalisation
- Low noise power supply regulators
- DC coupled input stage
Specifications :
- 110W RMS per channel into 8 Ohms
- Six line inputs
- Option to fit a MC or MM phono module OR plug in DAC option
- Bi-wiring compatible
- Separate preamp output
- High quality capacitors used in the signal path
- Uniquely tuned short signal and power supply path PCB
- Cascode circuitry utilised for improved power supply immunity
- Fast bipolar transistor output stage for dynamic and vivid performance
- All aluminium casework and extruded front panel to control resonance and stray electromagnetic fields
- Remote control
- Three year guarantee
- Available in black or titanium
Outputs:
- Power Output (Stereo): 110W per channel at 1kHz into 8 Ohms
Pre-Amplifier
- Pre-Amplifier Output: 1.9V for rated input (gain *18dB full volume)
- Maximum Output: 7.7V RMS @ 1kHz
- Frequency Response: 20Hz – 20kHz + 0.5dB
- Total Harmonic Distortion: <0.03% at rated output, ref. 1kHz
- Signal to Noise Ratio: >100dB, ref. rated output
- Channel Separation: >60dB 20Hz – 20kHz
Headphone
- Output Impedance: <12 Ohms at 1kHz
- Maximum Level into 33 Ohms at 1kHz & 0.05% THD: 4.8V RMS, (700mW)
- Total Harmonic Distortion at 2V Output 1kHz: <0.02%, (120mW)
- Maximum Level into 330 Ohms at 1kHz & 0.02% THD: 7V RMS (150mW)
Inputs (Line)
- Input Impedance: 76 Ohms minimum (line input)
- Input Sensitivity: 250mV
General
- Mains Supply: 110/120V or 220/240V, 50/60 Hz (factory set)
- Fuse: TSAL for 110/120V units, T4AL for 220/240V units
- Power Consumption: <400W, 8 Ohms load, both channels driven
- Dimensions (HxWxD): 115mm x 440mm x 300mm
- Net Weight: 12kg
- Gross Weight: 14kg
Expansion Cards:
DAC Board:
- 2V RMS output for full scale input
- THD @ 1KHz < 0.005%
- One Coax (BNC) input sample rate supported: 32, 44.1, 48, 88.2, 96, 176.4 & 192kHz @ up to 24 bits
- USB2 input sample rate supported: 44.1, 48, 88.2, 96, 176.4 & 192kHz PCM @ up to 24 bits, DSD x64 (DoP)
Phono Card MM (Sensitivity and Signal to Noise, ref 1 kHz and 250mV Out):
- GAIN 1 jumper fitted: 2.5mV, >78 dB S/N (default setting)
- No jumper fitted: 5mV, >79 dB S/N
- 47K Ohms
- Or With Loading 1 Fitted: Additional 220pF in parallel with the cartridge (default)
Phono Card MC (Sensitivity and Signal to Noise, ref 1 kHz and 250mV Out ):
- GAIN 1 jumper fitted: 2.5mV, >68dB S/N (default setting)
- No jumper fitted: 5mV, >70 dB S/N
- 6n8 in parallel with 1K5 Ohms
- Or With Loading Jumpers Fitted: 1+2+3 100 Ohms (default), 1+2 110 Ohms, 1+3 130 Ohms, 2+3 210 Ohms, 1 160 Ohms, 2 310 Ohms, 3 470 Ohms
