Description
Exposure XM HP : Headphone Amplifier
Exposure’s XM Series offers a similar level of performance to their full size 2010 & 3010 units but within a shoebox sized form factor comprising of a high quality XM5 integrated amplifier, XM7 pre amplifier, and XM9 mono power amplifiers. Along with these superb units, they also provide an XM3 phono amplifier for your turntable, and a dedicated XM HP headphone amplifier to drive demanding headphones with ease.
- Custom-made toroidal power transformer
- High quality all aluminium casework and extruded front panel
- High quality resistors & capacitors used in the signal path
- All discrete audio output stage with high drive capability for low impedance headphones

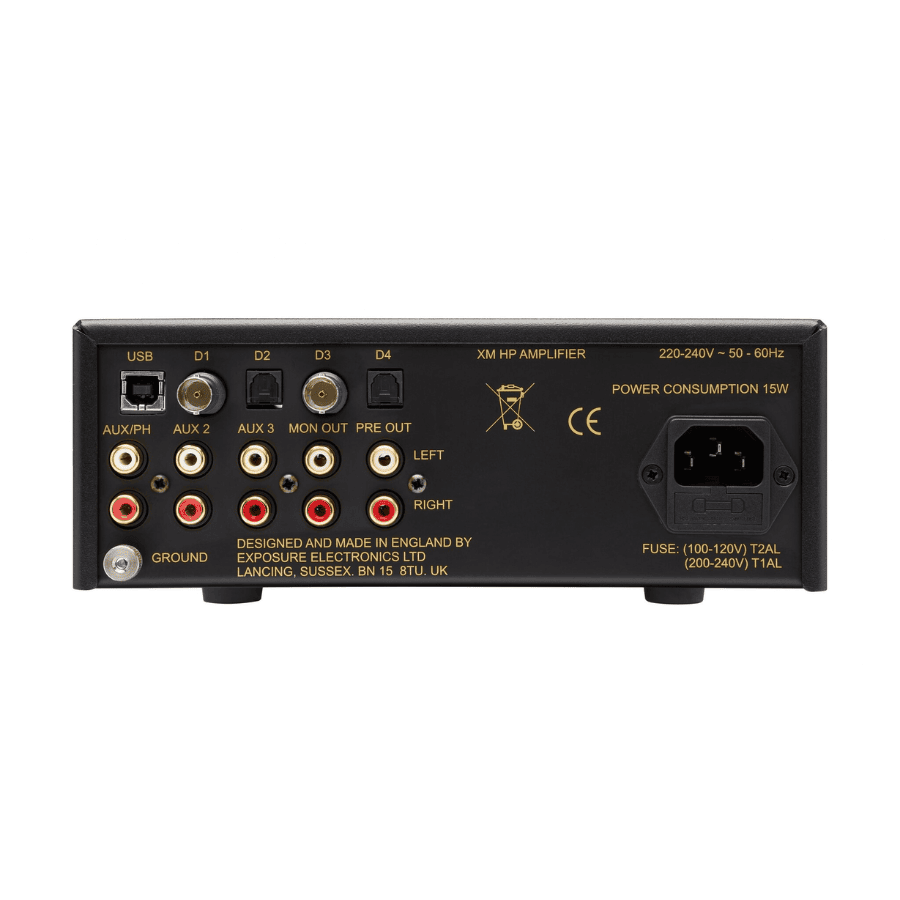

- 2 pairs of 6.35mm jacks and 2 pairs of XLR sockets allowing 2 pairs of headphones to be used at one time
- Moving magnet phono and two line level inputs
- Two coax (bnc) and two optical inputs and one class 2 USB input with DSD
- Separate pre-amp output
- Remote control
- Three year guarantee
- Available in black or titanium.
Specifications :
Analogue Inputs
Pre Amplifier Output (input sensitivity / impedance / S/N): AUX/PH input MM : 2.5mV @ 1KHz, 47K ohms S/N > 73dB
Frequency Response : +/-0.5dB 50Hz-20KHz. High pass roll off -1.5dB @ 20Hz
AUX 2 & AUX 3 input line : 350mV @ 1KHz > 14K ohms output gain x3.75, +11.5dB
Total Harmonic Distortion : <0.005% at 1KHz : @ 1.3V RMS output
Frequency Response : 20Hz – 20KHz +/- 0.5dB
Signal to Noise Ratio ref 1.3V RMS Output : 1KHz >92dB
Channel Separation @ 20KHz : >60dB
Digital Inputs
SPDIF inputs BNC Coax & Optical : 32 – 192KHz @ 16-24 bits
Total Harmonic Distortion : <0.005% at 1KHz @ 1.3V RMS output
Signal to Noise Ratio ref 1.3V RMS Output : 1KHz : >98dB
USB input : Linear PCM 44K1 – 192KHz @ 16-24 bits DSD x64 (DoP) Asynchronous transfer from host
Headphone Output
Output Impedance : < 5 ohms
Maximum Level into 33 ohms load : @ 1KHz & 0.01% THD : 7V RMS (1.5W)
Total Harmonic Distortion : @ 2V output, 1KHz : <0.003% (120mW)
Maximum Level into 330 ohms : @ 1KHz & 0.01% THD : 7.5V RMS (170mW)
Total Harmonic Distortion : @ 2V output, 1KHz : <0.003% (12mW)
Load Impedance total all outputs : 16 ohms minimum
General Specifications
Mains Supply : 110/120V or 220/240V @ 50/60Hz (factory set)
Power Consumption : <15W
Dimensions (WxHxD) : 218mm x 89mm x 363mm (inc knob)
Net Weight (unpacked) : 4kg
Gross Weight (packed) : 5kg
