Description

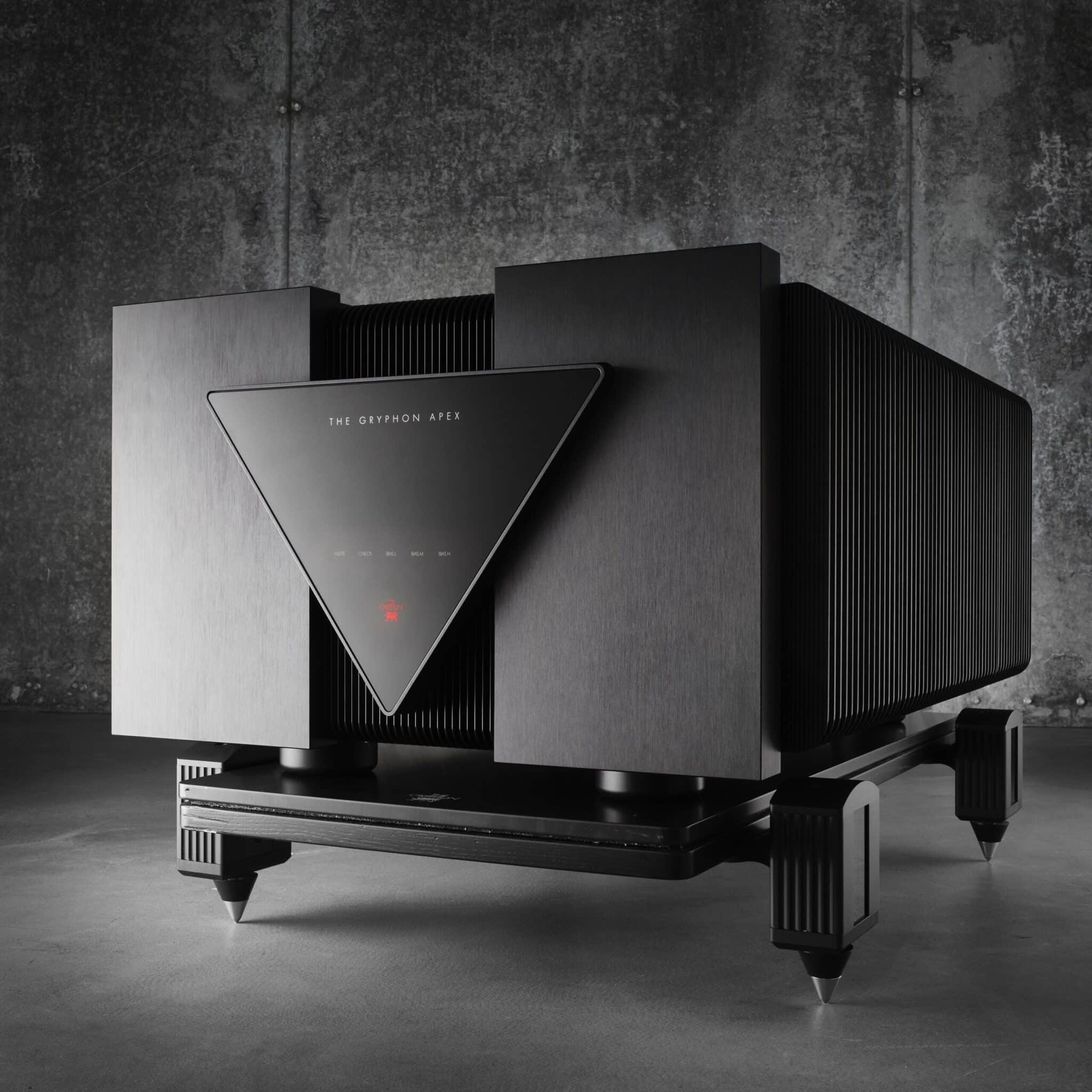

Gryphon Apex Mono : Power Amplifier Mono
Since its introduction in 2021, Apex has been hailed as the finest power amplifier ever created. Critics and connoisseurs have universally praised its combination of shattering power and sublime delicacy; its ability to drive any loudspeaker balanced with unimpeachable tonal neutrality. It has always been Gryphon’s mission to achieve the highest possible audio performance in terms of sheer musicality, transparency and realism. With Apex Mono and Apex Stereo, Gryphon Audio Designs has elevated pure Class A power amplification a titanic leap above what was previously considered possible. Gryphon Apex takes us several significant steps closer in the quest for the most natural and convincing musical illusion.
Years of experience developing Antileon EVO and Mephisto, as well as ongoing research in the fields of circuit topology, component quality and reliability have culminated in Apex: the new flagship amplifier from Gryphon Audio Designs.
Specifications :
- 1 x 225W @ 8Ω, 1 x 450W @ 4Ω, 1 x 880W @ 2Ω and 1 x 1690W @ 1Ω at 115V/230Vac
- Noise, unweighted 20-20kHz: < -80dBV
- Noise, A-weighted: < -86dBV
- THD+N: < 0,02%, 50W @ 8Ω
- IMD (DFD): < 0,02%, 50W @ 8Ω
- Output impedance: 0,010Ω
- Bandwidth (-3dB): 0,3Hz to 330kHz
- Gain: +31,0dB
- Max. input level: 1,20Vrms
- Input Impedance, balanced (20-20kHz): 10kΩ
- Power consumption (Maximum): 3700W each amplifier
- Power consumption (Idle): Bias H: 1000W / Bias M: 660W / Bias L: 320W – each amplifier
- Power consumption (Standby): < 0,5W each amplifier
- AC inlets: 2 sockets on each amplifier for power cords with C19 receptacle
- Dimensions, WxHxD::59,3×37,1×88,6 cm, 202kg net. – each amplifier
- Shipping dimensions for a pair: Two crates; each 102 x 81 x 67 cm, total 530kg
