Description

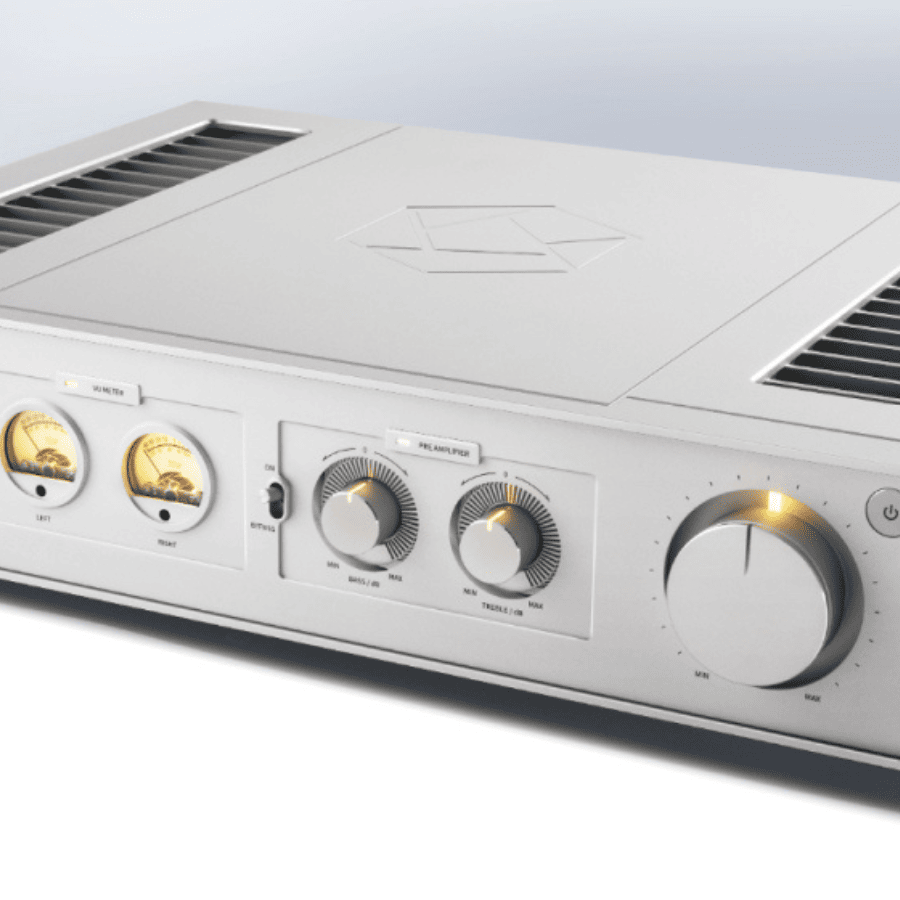

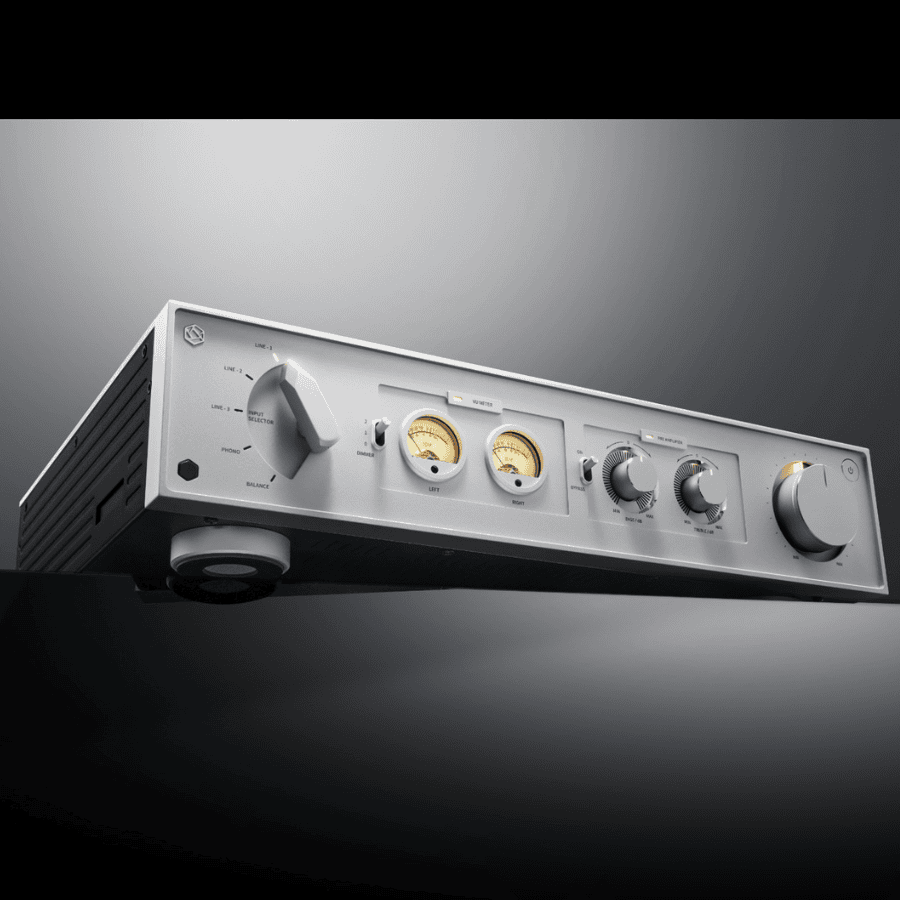

Hifi Rose RSA280 : Integrated Amplifier
The RA280 is an integrated amplifier that inherits the innovative technologies used in RA180. Enjoy pure natural sound as close to the original sound as you can get with the RA280: a near-perfect sound that transcends the boundaries between digital and analogue technologies with excellent linearity achieved through strong power damping and short dead time. The RA280 offers a special listening experience that lets you feel the true essence of music.
Specifications :
- dimensions: width 430 x depth 355 x height 103
- weight: 9.5kg
- body: solid adluminium, rust-proof steel
- amplifier output:
- 4Ω: 250W x 2ch (500W)
- 8Ω: 250W x 2ch (500W)
- sub woofer output: mono, 1Vrms (2.218 dBu)
- Input sensitivity:
- Balance input: 600mV
- Unbalance (Line 1, 2, 3) input
- phono (MM) input: 5mV
- input impedance:
- balance input: 47kΩ
- unbalance (Line 1, 2, 3) input: 47kΩ
- phono (MM) input: 47kΩ
- bandwidth:
- 20Hz ~ 20kHz: +0, 0dB
- 10Hz ~ 66kHz: +0, -1dB
- 10Hz ~ 85kHz: +0, -3dB
- frequency response:
- 20Hz ~ 20kHz: +0, 0dB
- 10Hz ~ 66kHz: +0, -1dB
- 10Hz ~ 85kHz: +0, -3dB
- THD (Total Harmonic Distortion):
- Balance & Unbalance (Line 1, 2, 3) input: 0.007% (@125W)
- Damping factor:
- speaker output: >250
- S/N (signal to noise ratio):
- abalanced/unbalanced/phono (MM): 109dB/109dB/85dB
- output impedance:
- speaker output: 30mΩ
- tone control:
- bass (100Hz) / Treble (10kHz): ±15dB
- phono (MM):
- turnover: 500Hz (+13dB@100Hz)
- roll-off: 2.1kHz (-13.7dB@10kHz)
- power:
- output power: 500W (SMPS)
- input voltage: AC100-230V, 50/60Hz
- audio in/out on rear:
- trigger in: voltage can be turned on 3.3V ~ 12V
- trigger out: voltage can be turned on 12V
- remote control:
- IR input: 38kHz infrared ray (within 10m of operating distance)
