Description
MBL 101 XTRM : Speaker

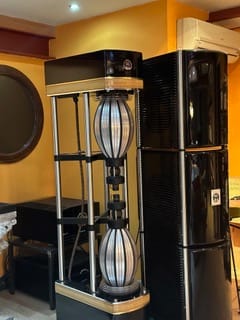

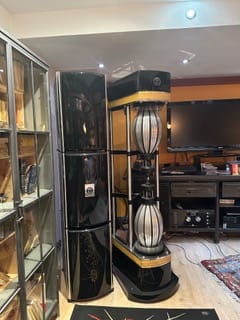

The crown jewel of MBL’s legendary product line, the 101 X-Treme system never fails to astonish – in looks or sound. Our flagship transducer is comprised of two six-foot tall towers that each house a pair of MBL’s iconic Radialstrahler omni systems, flanked by another pair of six-foot subwoofer towers to create an extreme four tower system. Beyond their aural purity and objet d’art presence, each Radialstrahler tower features a pair of MBL’s proprietary high, mid, and low-frequency spherical drivers that capture the inimitable MBL audio signature. Purposefully configured in a stunning vertical mirror array, the 101 X-Tremes distribute sound to every corner of your listening space. Meticulously hand-crafted from carbon fibre, copper, aluminum and magnesium, the revolutionary mirror array allows the 101 X-Treme to project music farther without increasing the volume.
Within each omnidirectional tower are unique driver membranes that deliver micro-precise, lightning-fast movements to produce accurate, distortion-free sound in all frequency ranges. The massive pair of enclosed subwoofer towers, each loaded with six 12-inch drivers for a total of twelve 12” aluminum cone woofers, plumb the bottommost reaches of your favorite bass lines using a push-push arrangement to perfectly counter any unwanted cabinet resonances. With heavy sandwich-core construction and an eye-watering system weight exceeding one ton, structural transmission of sound doesn’t stand a chance.

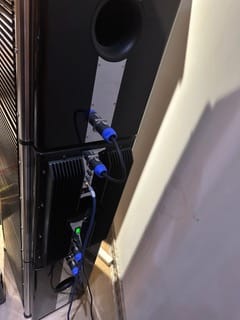

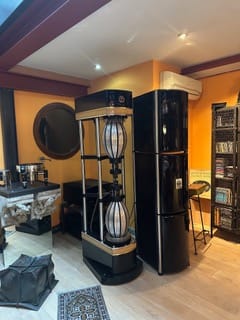

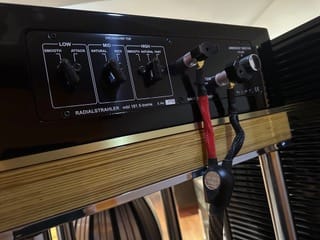

Challenging room acoustics? Smoothly managed with passive jumpers on the back panels to fine-tune the bass, midrange and treble. Each subwoofer is designed to be located diagonally behind the crowd-stopping Radialstrahler towers, with the option to stack up to three sections in a classic pillar, or align them horizontally as three individual modules. Extensive control options, including time delay and Q factor of each channel’s sub-bass, overcome virtually all architectural impediments to magnificent, room-filling sound.
From stygian bass notes to the brightest octave treble clef, the MBL 101 X-Treme MKII System represents the pinnacle of pure musical enjoyment – all from a loudspeaker so exquisitely crafted that only twelve systems are produced every year.
Specifications :
Technical Specifications
| System | 4-way system with double tweeters, midrange and woofers (D’Appolito arrangement), ambient tweeter and active subwoofer |
| Acoustic center | 100 cm / 39 » |
| Subwoofer | Active subwoofer, each channel 6 x 12 » aluminum cone drivers in three cabinets, push-push arrangement, cabinet volume 3 x 86 liters |
| Woofer | Radial TT100, copper-alu-magnesium |
| Midrange | Radial MT50, woven carbon fiber |
| Tweeter | Radial HT37, unidirectional carbon fiber |
| Lowest frequency | 24 Hz |
| Crossover frequencies | 85 Hz, 600 Hz, 3 500 Hz |
| Nominal impedanz | 4 Ohm each upper/lower unit |
| Nominal power handling / Peak | each channel: 2 x 900 Watt / 2 x 1 800 Watt |
| Dimensions (WxHxD) | Radial system: 496 x 1 854 x 687 mm / 19.5 » x 73 » x 27 » Subwoofer: 410 x 1 860 x 670 mm / 16.2 » x 73.25 » x 26.4 » |
| Weight | Radial system: each channel 265 kg / 584 lbs Subwoofer: each channel 227 kg / 500 lbs Total system: 984 kg / 2 170 lbs |
