Description

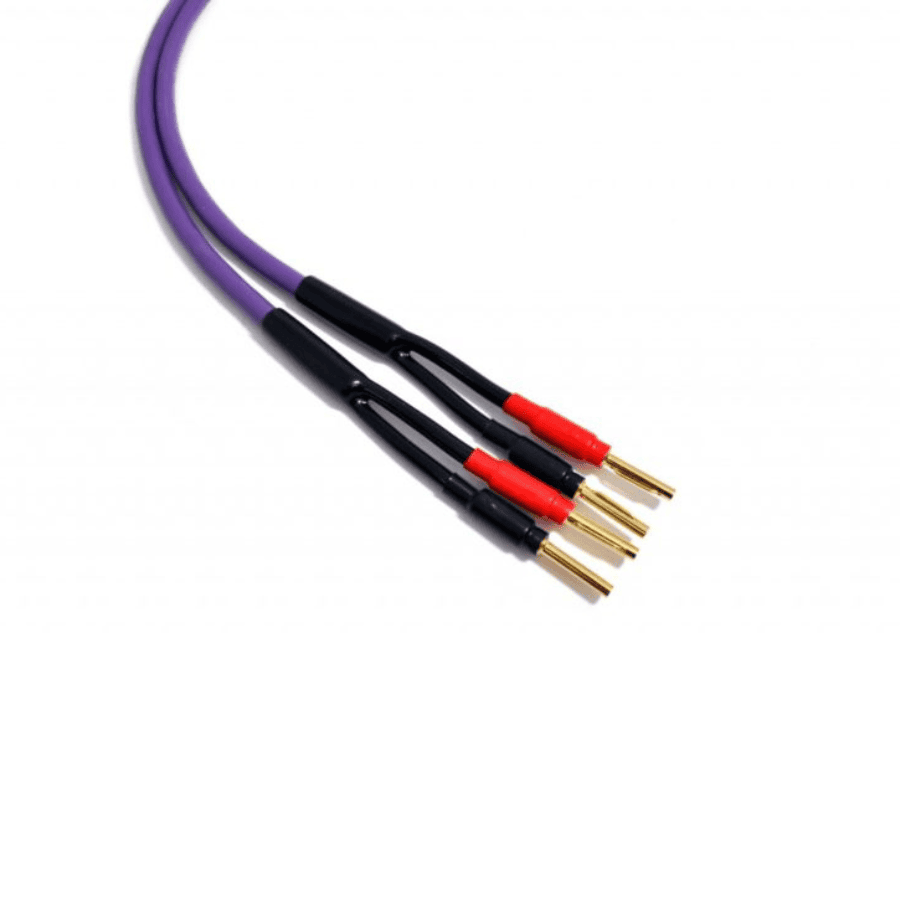

Melodika Purple Rain MDSC40
Description:
- Construction: 170×0,15mm oraz 1×1,1mm
- BassCore Technology: unique cable construction, distinguishing between cores to low and high-mid tones (more below)
- Geometry: conductors twisted with each other in order to reduce their interference
- Dielectric: Perfect cable for concealed wiring (unique external shielding made from modified PCV with higher resistance, thanks to that cable can be laid under plaster or concrete without any concern of damagine)
- Wires resistance: (DC w 20°C): 4,37 Ohm/1000m lub mniejsza
- Isolation resistance: >=1 G Ohm/km
- Voltage test 1kV
Length availability:
MDSC4015 – 1,5m
MDSC4020 – 2m
MDSC4025 – 2,5m
MDSC4030 – 3m
MDSC4035 – 3,5m
MDSC4050 – 5m
MDSC4070 – 7,5m
Specification:
| Conductor material: | OFC: 99.99% |
| Plugs: | banana plugs |
| Shape: | Round |
| They can be applied to the installation: | Yes (double isolation) |
| Directional: | No |
| Wire flexibility, diameter of the cable breakdown: | 60mm |
| Cable thickness: | 10mm |
| Plugs dimensions: | Lenght: 46mm Diameter:11mm |
| Construction: | Twisted |
| Isolation: | double PVC |
| Manufacturer’s recommendation: | perfect for installations |
| Bi-wiring/Bi-amping: | No |
| Gauge: | 11AWG |
| Pros: | quality/price ratio, flexible, shielding, deep bass, controled bass, treble, timbre, plugs |
| OTHERS: | Perfect cable for concealed wiring (unique external shielding made from modified PCV with higher resistance, thanks to that cable can be laid under plaster or concrete without any concern of damaging it). |
| :: | Wires resistance: (DC w 20°C): 4.37 Ohm/1000m or less |
| :: | Isolation resistance: >=1 G Ohm/km |
| :: | Voltage test 1kV |
| :: | 110×0.15mm and 1×0.85mm |
| Warranty: | 5 years |
