Description
Musical Fidelity M6X 350.11 : Multichannel Power Amplifier
Musical Fidelity M6x 250.11 is the elevan channel power amplifier in their line up of AV power amplifiers, which also includes five and seven channel versions. The 250 indicates 250W per channel (400W peak) to the 3 main channels (L,C,R) and 150w per channel (250w peak) to the remaining 8 channels.
Class AB output stages are used for each module. This gives class A performance with class B efficiency. To provide adequate current the units use massive toroidal transformers along with hi-grade capacitors. The case is robustly made of a strong aluminium extrusion. Finally, balanced XLR inputs are available as well as standard RCA connectors.
Multi Channel Power
Surround sound entered the home in the 1980’s after being in cinemas since 1940. This simple three speaker setup became todays multi-channel object based system. For example Dolby Atmos or DTS. To get the full 3D object based system with height channels you need the M6 250.11, 11 channel amplifier and a suitable Pre-amplifier/AV processor.
High Quality Connections

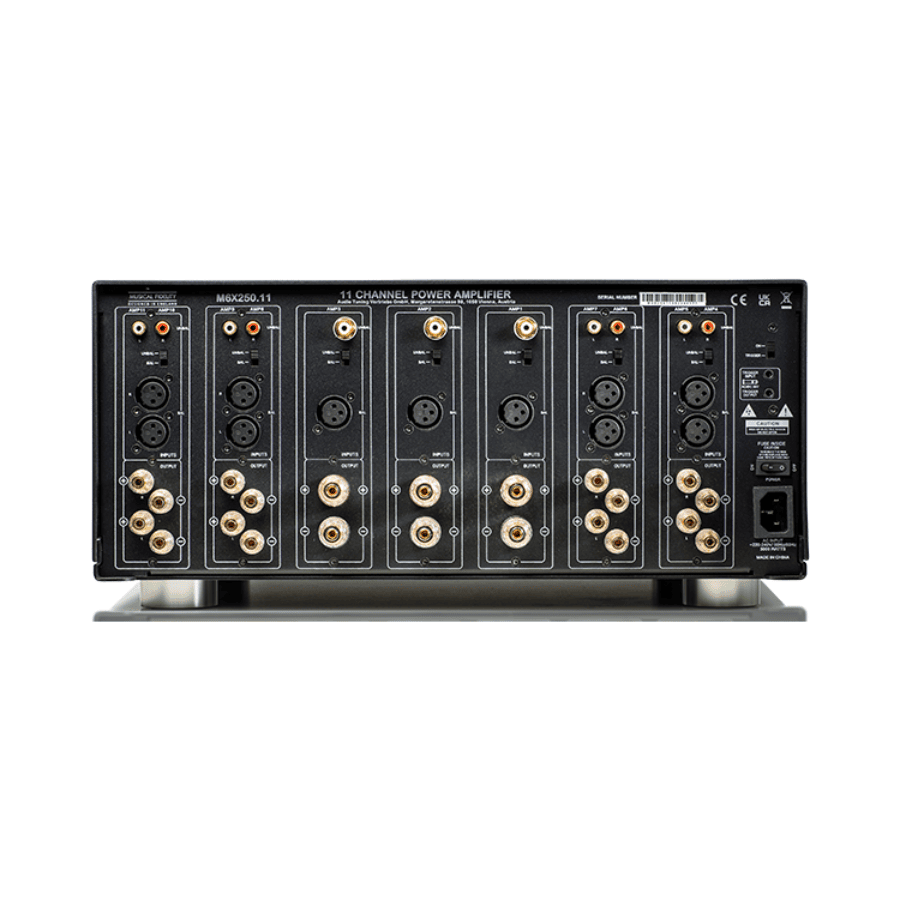

The M6X 250.11 features top quality gold plated, balanced XLR inputs. Balanced inputs improve dynamics, create less noise and provide a better signal to noise ratio. However, you can still use the conventional RCA inputs, which are gold also plated. Additionally, each amplifier module has a loop through option, so that you can connect the same source to multiple modules. The speaker outputs are also gold plated and isolated. They can take, spade connectors, bare wire or 4mm plugs. Finally you can turn the unit on or off with the trigger input.
High Output Power Modules
Each of the 11 channels on the M6x 250.11 is class AB for a clean and natural sound. The output power on the front three channels is 250 Watts and to other channels 150 Watts (both rated into 8 ohms). Such a high output needs a beefy power supply. The M6 range uses large toroidal transformers to provide enough current for good dynamic range and to maintain transients. Transients are bursts of sudden current demand such as with a loud explosion. With all that power efficient heatsinking is needed and the M6 series uses innovative methods, so that no noisy cooling fans are needed.
M6 Range
The M6 series includes a full range of complementary products, such as CD players, DACs, integrated amplifiers and a pre-amp. You can also add a turntable with a phone pre-amp. The M6 series will from the heart of a class leading audio system. Innovative features and technology give the best sound from both analogue and digital sources.
Forty Years of Innovation
Musical fidelity was founded in 1982 and their first product was The Preamp. Rave reviews led to the A1 integrated amplifier, which followed in 1984. As one of the best known names in audio they were early adopters of digital. Releasing their first DAC in 1987. They have also delved into valve technology with a hybrid DAC released in 1987. By 2003 Musical fidelity had released the well received M1 turntable. Now the RoundTable S continues to innovate with a polished high carbon steel bearing and a high quality pick up arm.
Features
- 250 watts per main channel, and 150 watts for each of the effect channels.
- Easily create a high-quality Dolby Atmos hone cinema setup.
- Excellent technical Musical Fidelity performance finally available for home cinema enthusiasts.
- Amazing load driving ability, unconditional stability will drive any loudspeaker.
- RCA and balanced XLR inputs.
- Through Out for bi-amping.
- Trigger In / Out for seamless home theatre integration.
- Complete silent operation, no active cooling elements.
- Excellent, massive and clean build quality.
Specifications
Output Main (C, LF, RF):
-
- Power: 3 x 250 W / 4 ohms (Peak: 400 W)
- THD+N: 0.003 % at 100 W power output
- Frequency Response: 20 Hz – 20 kHz for 0.5 dB
- SNR: 105 dB at 1 kHz at 200 W power output
Output Effect Channels:
- Power: 8 x 150 W / 4 ohms (Peak: 250 W)
- THD+N: 0.003 % at 100 W power output
- Frequency Response: 20 Hz – 20 kHz for 0.5 dB
- SNR: 103 dB at 1 kHz at 200 W power output
- Connections:
- 11 x line level RCA input
- 11 x line level balanced XLR input
- 11 x pair speaker terminals
- 1 x Trigger input & output
- General
- Input Sensitivity: 700 mV at RCA input, 1.4 V at XLR input
- Dimensions (W x H x D): 435 x 205 x 430 mm
- Main Voltages: 230 V / 115 V Internally set, or 100 V optional AC 50 / 60 Hz
- Max. Consumption: 2750 W, <0.5 W in standby
- Weight: 35.5 kg (ca. 39 kg incl. shipping carton)
