Description

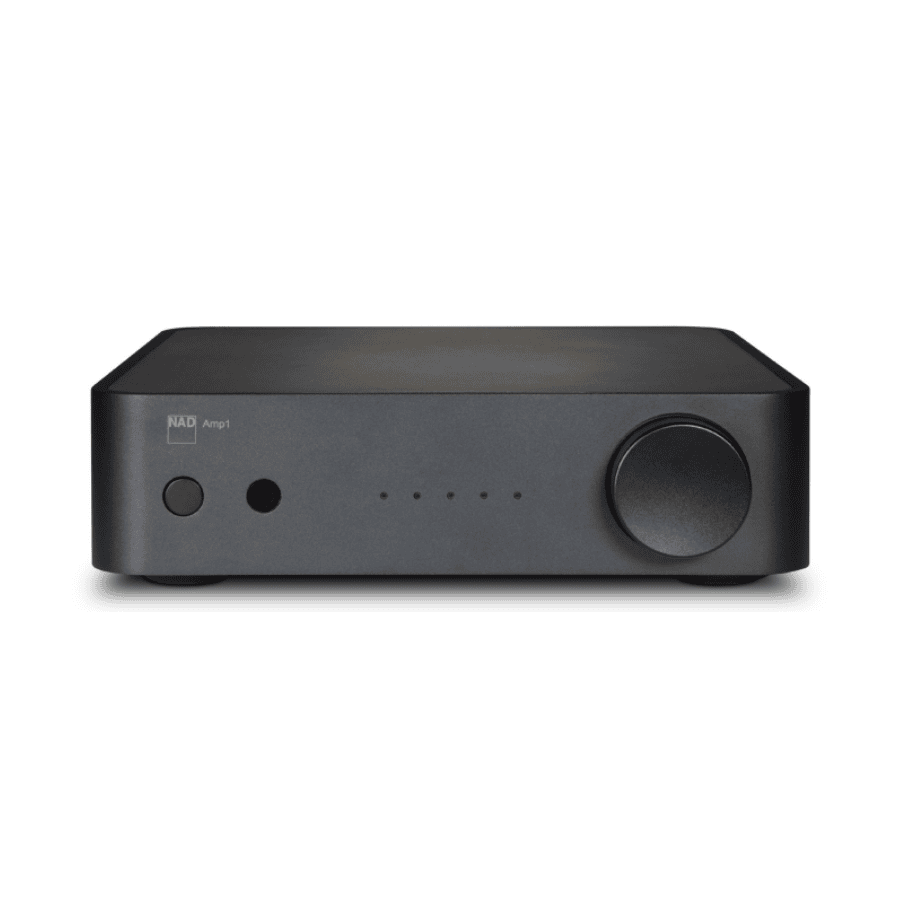

NAD AMP1 : Integrated Amplifier
The AMP1 adds big sound to your favourite music sources and brings incredible flexibility to any stereo system. This hi-fi amplifier has Chromecast built-in, and allows you to stream and cast music directly from a mobile device or any music streaming app, letting you enjoy your music wirelessly. With Bluetooth® also natively integrated, the AMP1 can wirelessly connect to any smart phone,
tablet, or Bluetooth-enabled device within range so you seamlessly stream your favourite music apps or libraries in high-fidelity.
Specifications :
GENERAL SPECIFICATIONS
- Rated Output Power into 4 Ohms and 8 Ohms (Stereo)
- >40W (at rated THD, 20-20kHz, both channels driven)
- IHF Dynamic Power
- 4 Ohm 100W, 8 Ohm 50W
- THD (20Hz – 20kHz)
- <0.03% (Rated power, 8 Ohms and 4 Ohms)
- Signal/Noise Ratio
- >106dB (A-weighted, Optical input, ref. 40W out in 8 Ohms)
- Clipping power
- >50W (at 1kHz 0.1% THD)
- Frequency response
- ±0.3dB (20Hz-20kHz, 4-8 Ohms load)
- Input sensitivity (for 40W in 8 Ohms)
- Line In: 450mV Digital In: -5dB FS
- Maximum input signal
- >2.1Vrms (ref. 0.1% THD)
- Output impedance
- 220 Ohms
- Maximum voltage output
- >2.0V (ref. 0.1% THD)
- Support bit rate/sample rate
- Up to 24bit/192kHz
- Standby Power
- <0.5W (Off-mode), <3W (Network standby)
- Input sensitivity, Phono
- 5mV (ref 40W 1kHz 8 Ohms out, volume maximum)
DIMENSIONS AND WEIGHT
- Dimensions (W x H x D) *
- 220 x 63 x 252mm 8 5/8 x 2 1/2 x 10” **
- Net Weight
- 4.85kg (10.7lb)
