Description

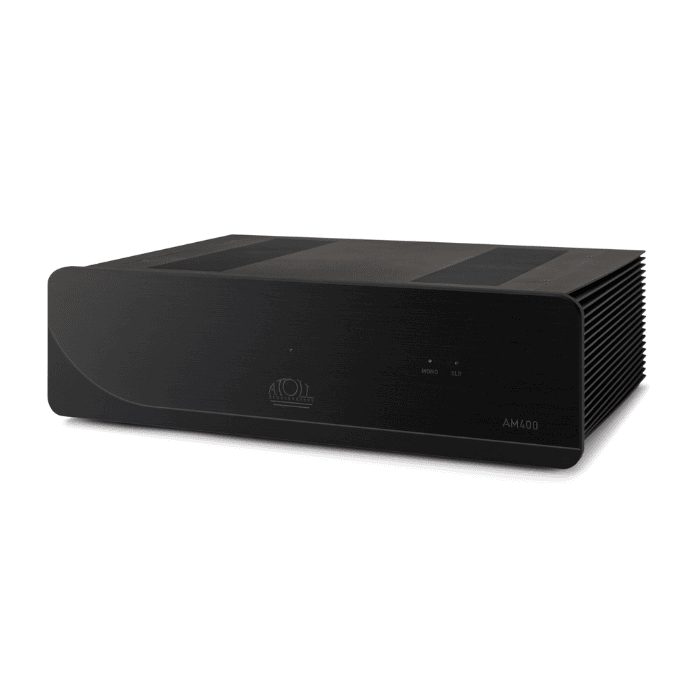

Atoll AM400 : Mono Power Amplifier
During the development of the power amplifier AM400 Signature, the attention to detail led us to take into account all the parameters, to compare and listen to each component. The power stages have 8 MOS-FET transistors per channel which provide considerable energy, perfectly controlled thanks to carefully designed audio stages. The connecting cables between the motherboard and the loudspeaker outputs are made of pure copper, deoxygenated, silver plated with Teflon insulation. One of the best French manufacturers of audio cables makes these cables on demand. Similarly, filter capacitors, with low series resistance, are made to specifications by a leading specialist.
- 10 mm brushed aluminium front.
- 2 mm steel frame.
- Linear power supplies based on toroidal transformers.
- Symmetrical stages with discrete components.
- XLR balanced inputs.
- RCA inputs (selectable on the rear panel).
- Mono block bridgeable amplifier (switch facing the rear).
- Integral dual mono structure.

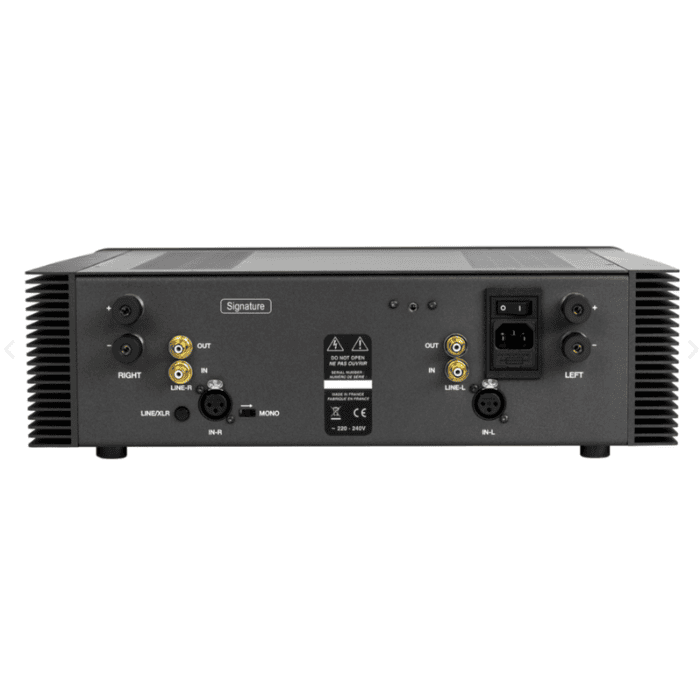

CONNECTIVITY
Audio inputs
1 Stereo line input.
1 Stereo XLR input.
1 Trigger input 12V.
Audio outputs
1 Stereo line output.
1 Stereo speaker output.
Input type selector:
– Line: button up.
– XLR: button pressed.
Various
1 Mono bridge switch.
Specifications :
ower Wrms/8Ω: 160 W
Power Wrms/4Ω: 300 W
Power in bridged mono/8Ω mode: 600 W
Power supply: 1050 VA
Total of capacitors: 111 300 μF
Input impedance: 220 kΩ
Sensitivity: 1,7 V
Signal/Noise ratio: 100 dB
Distortion at 1 kHz: 0,005%
Bandwidth: 5 Hz – 200 kHz
Rising time: 1,5 μs
Dimensions (mm): 440×370×130
Weight: 19 Kg
