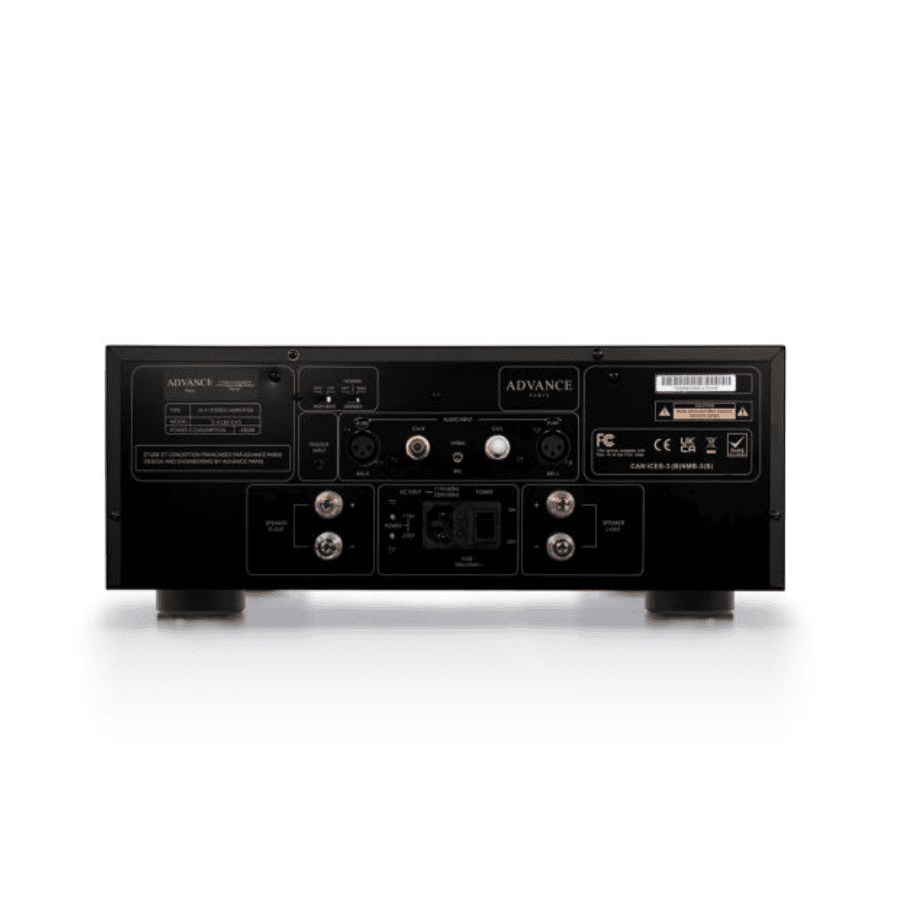

Advance Paris X-A160 : Stereo Power Amplifier
New diagrams, power transistors identical to the MAA 1000, new power supply, more power, more music, more modern presentation such is the X-A160EVO.
The X-A160EVO amplifier consists of an ultra-rigid, compartmentalized chassis, providing effective shielding, thus eliminating any risk of radiation between the various circuits of the device.
The use of “Audiophile” type components guarantees a reproduction of your favorite music with finesse and subtlety.
The high power supply associated with the « very high current » power transistors (NJW0281G – NJW0302G) of the MAA 1000, restores the most demanding dynamics.
The X-A160EVO delivers a power of 160 Watts per channel in class AB*, a switch located at the back of the device allows the X-A160EVO to deliver the first Watts in class A*. Beyond this power, switching to class AB** takes place automatically when Hi-Bias is selected.
Specifications :
| Output power 8Ω | 2 x 160W RMS |
|---|---|
| Output power 4Ω | 2 x 240W RMS |
| Bandwidth | 10 Hz – 80 kHz |
| Distortion | <0,07% |
| Signal to noise ratio | > 120 dB |
| Channel separation | > 80 dB |
| Imped. Asymmetric input | 20 KΩ |
| Imped. input Symmetrical | 38 KΩ |
| Mains voltage | 115-230V |
| Standby consumption | <0,5W |
| consumption max. | 500w |
| Transformer power | 700w |
| Transformer | Toroidal |
| Height | 160 mm |
| Width | 440 mm |
| Depth | 430 mm |
| Net weight | 19 kg |
| Product Type | power block |
| VU-Meter | Yes |
