Audio Analogue Puccini

€ 5.500

Audio Analogue Puccini

UGS : ND Catégorie :

Description

Audio Analogue Puccini : Integrated Amplifier

Twenty years of Audio Analogue means twenty years of
Puccini, the two things go hand in hand. Puccini was the first
Audio Analogue amplifier and an absolute milestone in the
High Fidelity audio field.

Our dream was to create the best Puccini ever, a product

that marked a turning point in the history of Audio Analogue
and traced the way for all the products that came after it.
The Puccini amplifier was created with the intent to give the
maximum in terms of sound performance and also
technically very advanced.

This is certainly a difficult challenge and, to make it possible,

we needed something unique. It was at that time that an
idea born in the Airtech laboratories was finally consolidated:
to create an integrated amplifier without global feedback,
being less sensitive to the type of load to drive, without the
tendency to oscillate or high frequency resonance peaks, no
saturation in the input stages and with a fully balanced
circuit design.

Heavy metal cabinet, brushed aluminum front panel with 14mm thickness, remote control, volume control based on an encoder controlling four digital high precision potentiometers Analog Devices (two per channel).

The volume control has four selectable curves according to the sensitivity of the speakers. Indications of volume level and selected input, through white LEDs with brightness adjustable on two levels or off.

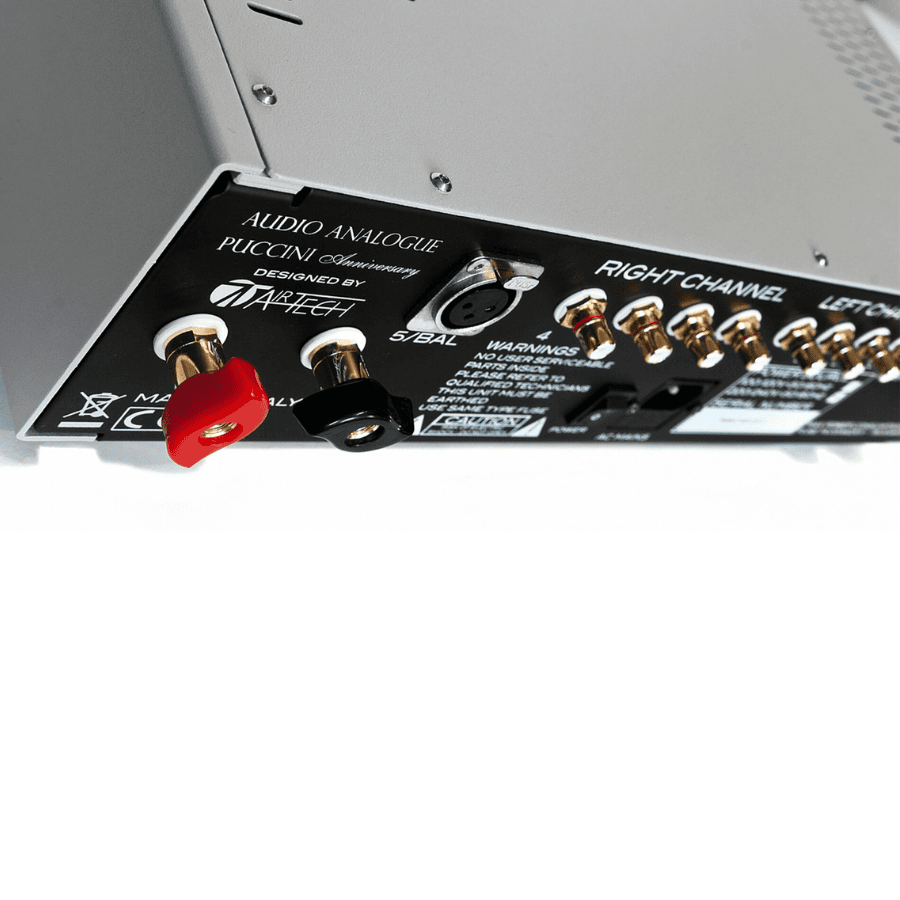

Inputs with high quality gold plated RCA connectors with Teflon insulation, soldered directly to the input board and activated via signal relay.

All amplifier stages are on independent boards. The printed circuit boards have tracks with double thickness of standard productions in order to increase the electrical conductivity.

Fully dual-mono circuitry.

Transformer from 700VA, six pairs of On-Semiconductor power transistor (three per channel).

Internal wiring with conductors in pure solid copper 7N OCC, military standard resistors, audiograde polypropylene capacitors, gold plated copper output connectors.

Available in natural aluminium or satin black

Specifications :

Channels
2
RCA inputs
4
XLR inputs
1
Input impedance
47 kΩ
Output power at 8Ω
80W @ 1% THD + N
Output power at 4Ω
160W @ 1% THD + N
Output power at 2Ω
300W @ 1% THD + N
Sensibility
Nominal output power at 8Ω
490mVRMS
Frequency response
Attenuation 0dB, Bandwidth -3dB
80KHz
Output resistance
Nominal output power at 2Ω/1kHz
0.17Ω
Noise level
Bandwidth limit 0Hz-80kHz/A weighted
=30µV/=10µV
SNR
=110 dB
Stand-by power consumption
0.7W
Dimensions
HxWxD
120x445x390 mm
Weight
15.5 Kg

Brand

Audio Analogue
