Description

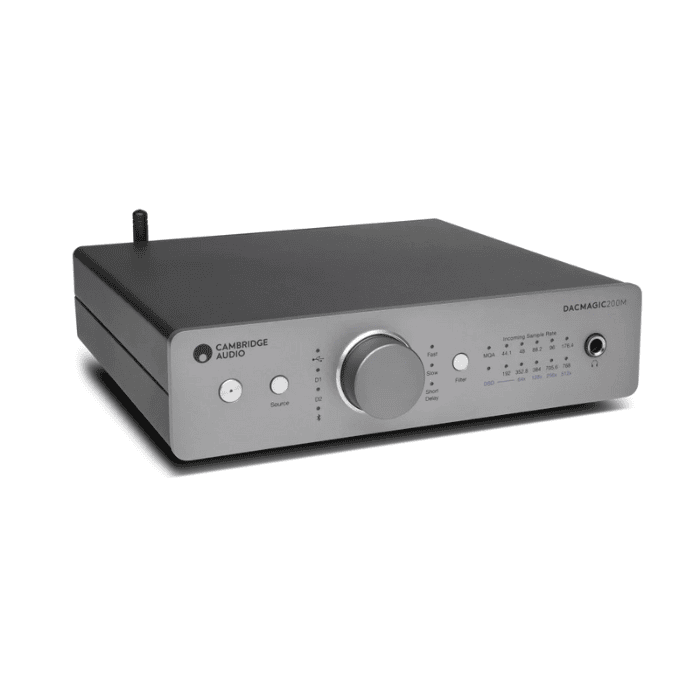

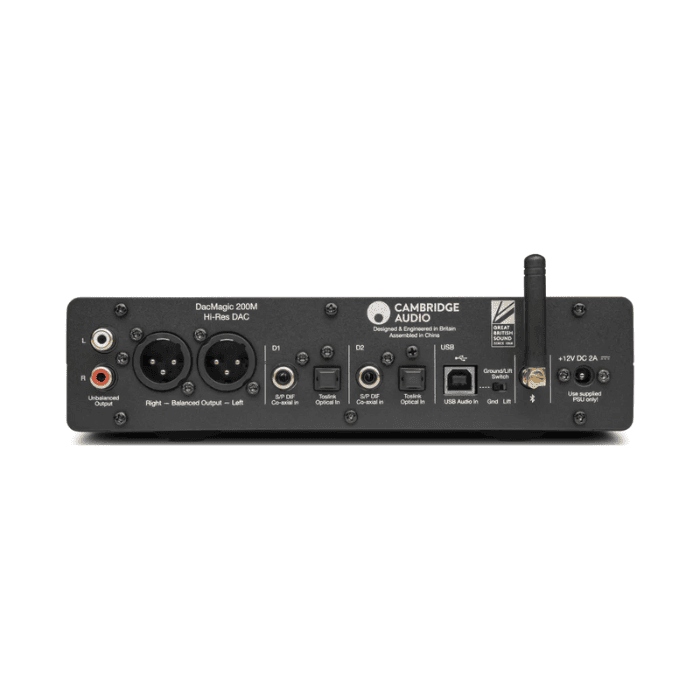

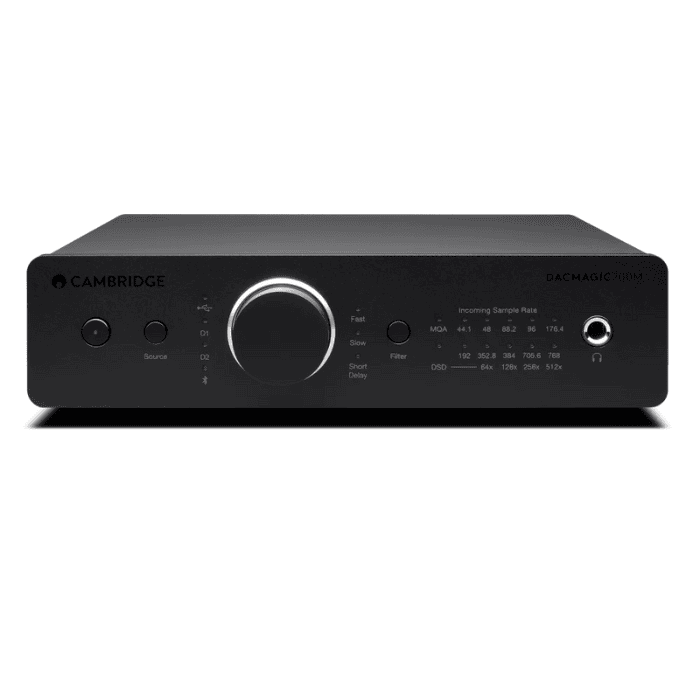

Cambridge Audio DACMagic 200M : DAC
erhaps your vintage amp lacks the digital inputs for today’s listening choices. Maybe the DACs in your hi-fi setup just need a helping hand. Or you hate how your computer down-samples audio streams before they’ve hit your headphones. One thing’s for sure, DacMagic 200M is a dedicated hi-fi separate that beats integrated DACs for pure sound performance.
Specifications :
-
THE DETAILS
DIGITAL TO ANALOGUE CONVERTERS Dual ESS ES9028Q2M DACs DIGITAL FILTER Selectable, Fast – Slow – Short delay FREQUENCY RESPONSE 10Hz to 50kHz (±1dB) THD+N @ 1KHZ 0DBFS <0.0005% (A-Weighted) SIGNAL TO NOISE RATIO >115dB (A-Weighted) CROSSTALK @ 10KHZ < -110dB OUTPUT IMPEDANCE <50 Ohms (unbal), <100 Ohm (bal) MAX. OUTPUT LEVEL (UNBALANCED) 2.1V rms (fixed or variable – user selectable) MAX. OUTPUT LEVEL (BALANCED) 4.2V rms (fixed or variable – user selectable) DIGITAL INPUT WORD WIDTHS SUPPORTED 16bit (Bluetooth), 16-24bit (Optical, Coaxial), 16-24bit (USB) DIGITAL INPUT SAMPLING FREQUENCIES SUPPORTED 44.1kHz to 96kHz PCM, DoP64 (Optical), 44.1kHz to 192kHz PCM, DoP64 (Coaxial), 44.1kHz to 768kHz PCM, Native DSD 64x to 512x, DoP 64x to 256x (USB) MQA COMPATIBILITY Full decoding (Core + Renderer) BLUETOOTH v4.2, A2DP profile, SBC and AptX codecs ROON TESTED Yes HEADPHONE OUTPUT THD+N < 0.001% at 1kHz 0dBFS @ 100mW into 32ohm HEADPHONE OUTPUT S/N > 115dB (A-Weighted) MAX OUTPUT POWER >300mW @ 32ohm, >65mW @ 150ohm FREQUENCY RESPONSE 10Hz – 50kHz (±1dB) RECOMMEND HEADPHONE IMPEDANCE 10 Ohm to 600 Ohm MAX POWER CONSUMPTION 12W COLOUR Lunar Grey DIMENSIONS (HXWXD) 52 x 215 x 191mm; (2.0 x 8.6 x 7.6”) WEIGHT 1.2kg/2.6lbs
