Description

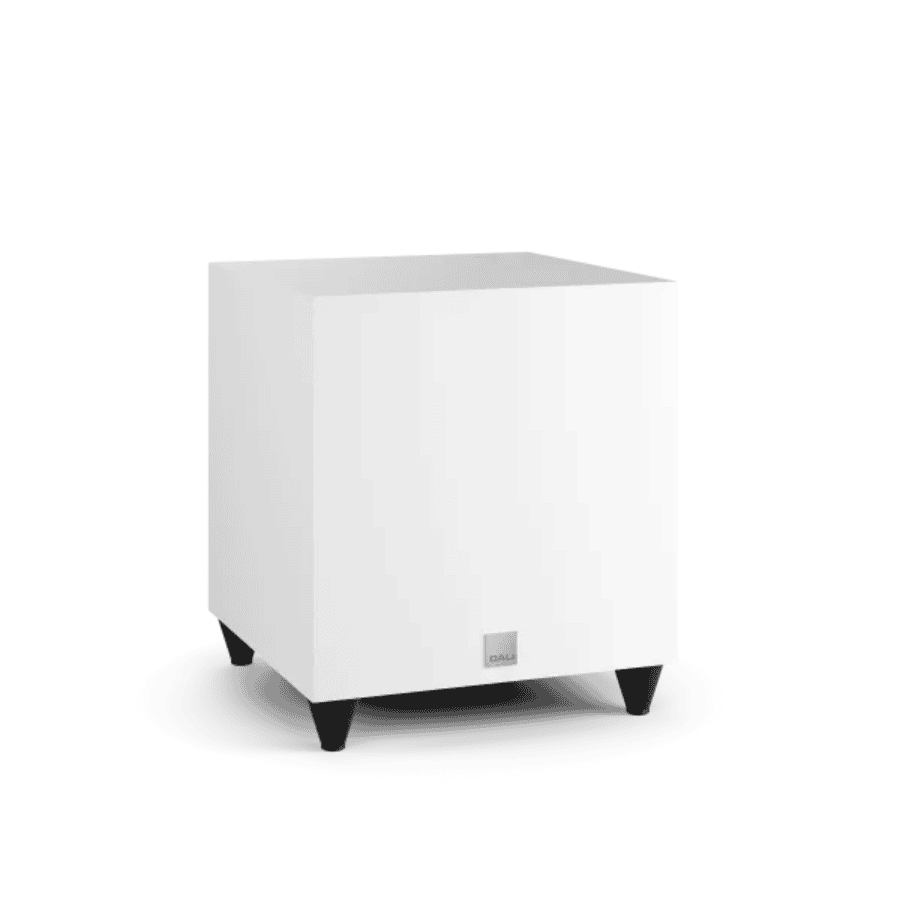

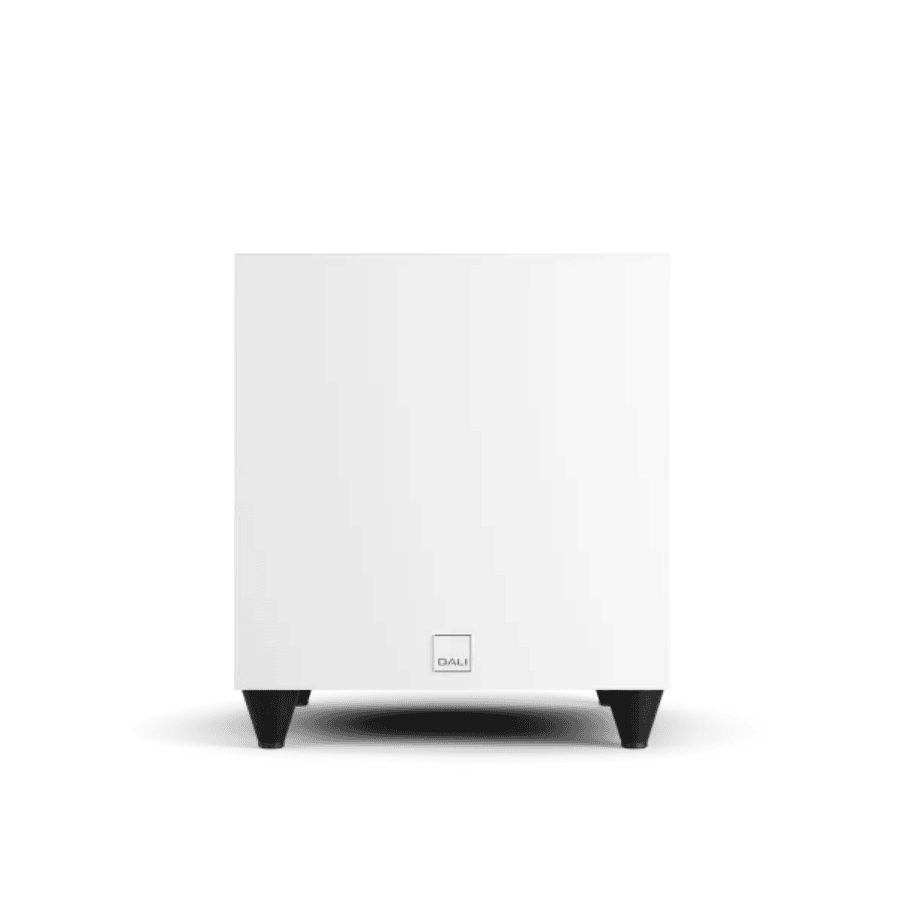

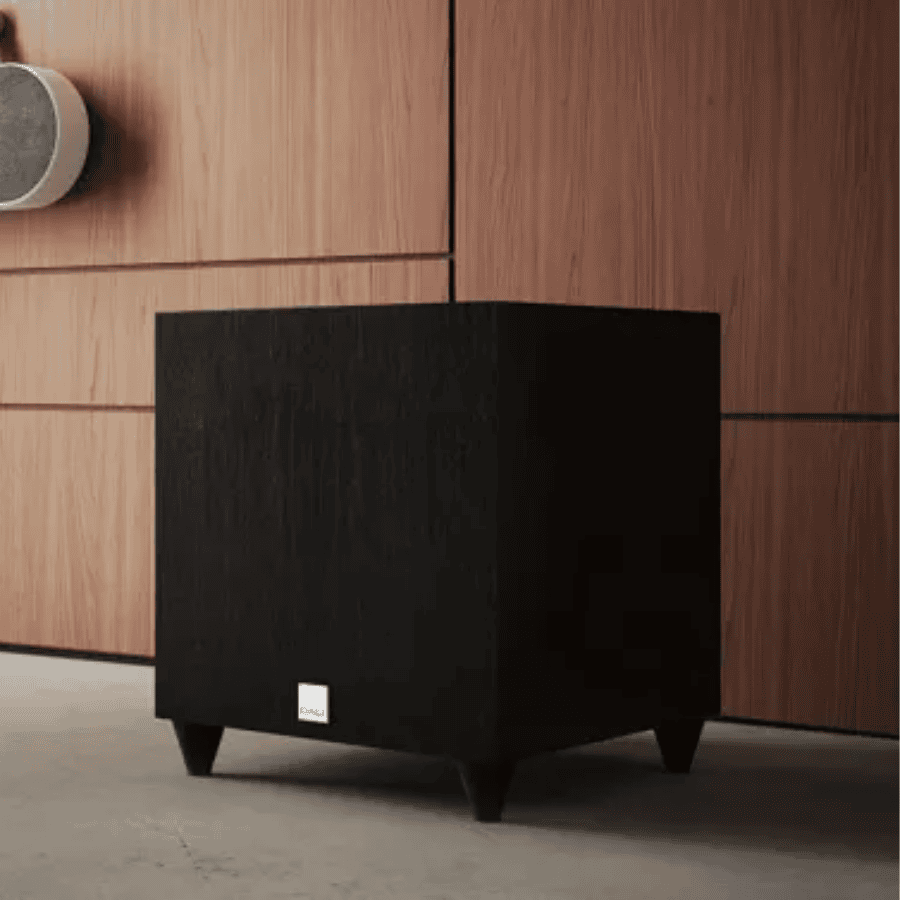

Dali SUB C-8 D : Subwoofer
With the SUB C-8 D, DALI offers an extremely compact but enormously powerful subwoofer that helps both hi-fi systems and home cinemas to achieve powerful and deep bass reproduction. A 200 mm woofer and a powerful Class D power amplifier make it possible.
The DALI SUB C-8 D can be used both as an addition to a hi-fi system and in a home cinema. In both cases, it reproduces low frequencies very faithfully and cleanly.
The placement of a subwoofer has a great influence on the bass reproduction. We recommend placing the SUB C-8 D in a corner or – if this is not possible – directly against a wall. These locations ensure maximum bass level and even sound distribution in the room. Thanks to its compact dimensions, the SUB C-8 D is much easier to place than larger subwoofer models.
Over the years, our engineers have developed a number of sound principles that can now be found in every DALI loudspeaker. Subwoofers, too, must meet the requirements of a wide dispersion angle, precise reproduction over time and the lowest possible losses. Thus equipped with DALI genes, it provides impressive film and music reproduction in small to medium-sized living rooms.
Specifications :
Frequency range (+/- 3 dB) [Hz]: 33 – 200
Maximum sound pressure level [dB]: 109
Crossover frequencies [Hz]: 40 – 120
bass-midrange driver / number: 1 x 200 mm ø long excursion
Bass-midrange driver, type of cone: paper fibre cone Enclosure type: bass reflex Bass reflex tuning frequency [Hz]: 49.0
Maximum amplifier power [RMS Watt]: 220
Amplifier continuous power [RMS watts]: 170
Input impedance [Ω]: 25k

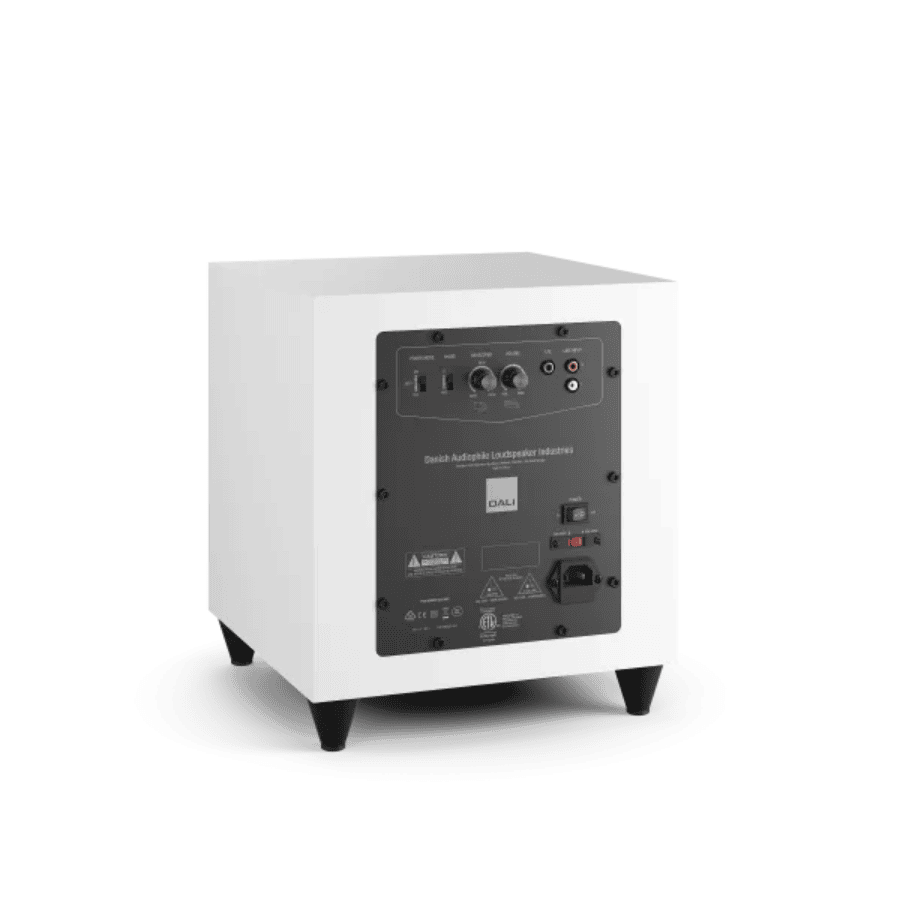

Inputs: Mono (LFE) / Cinch / Stereo (low-pass filtered) Magnetic shielding: No
Functions: Crossover frequency / phase switch / standby (auto power on) on/off switch & volume (level) Maximum power consumption [watts]: 250
Standby power consumption [W]: 0.4
Standby power consumption [W]: 10.4
Maximum dimensions with base and cover (HxWxD) [mm]: 335 x 295 x 310
Weight [kg]: 10.4
