Dali SUB E-9 F : Subwoofer

The DALI SUB E-9 F subwoofer is extremely compact with an edge length of only around 30 centimetres and is recommended for expanding numerous stereo and home cinema systems such as DALI’s ZENSOR and FAZON models.

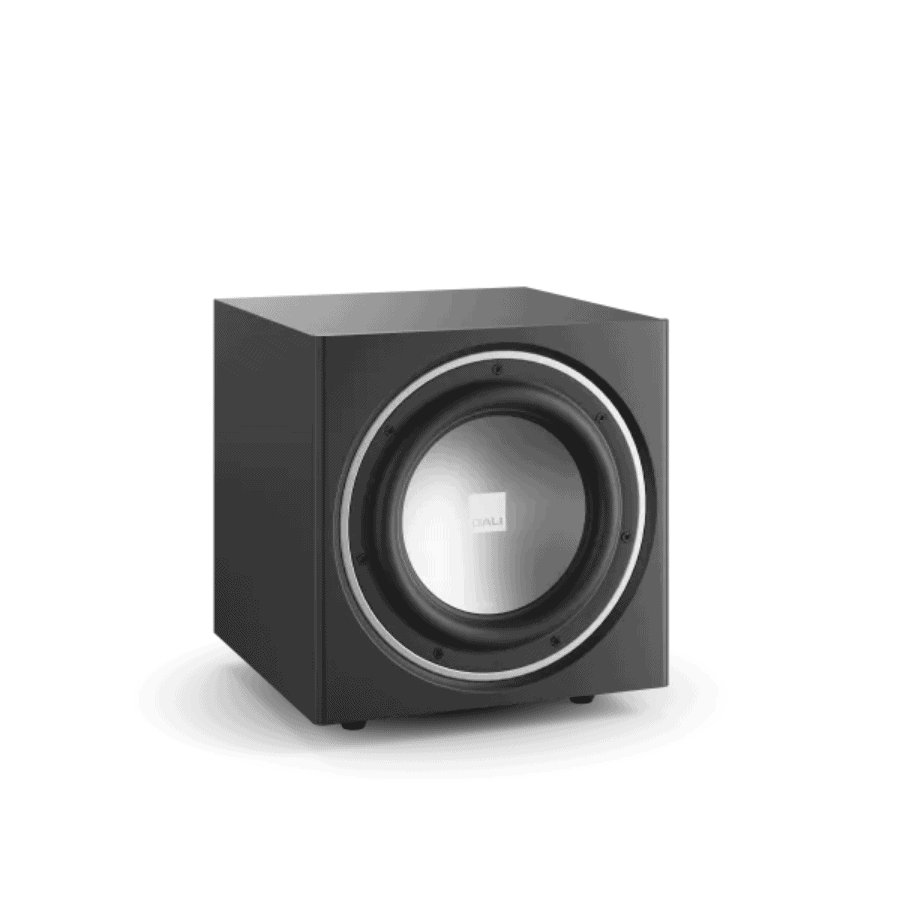

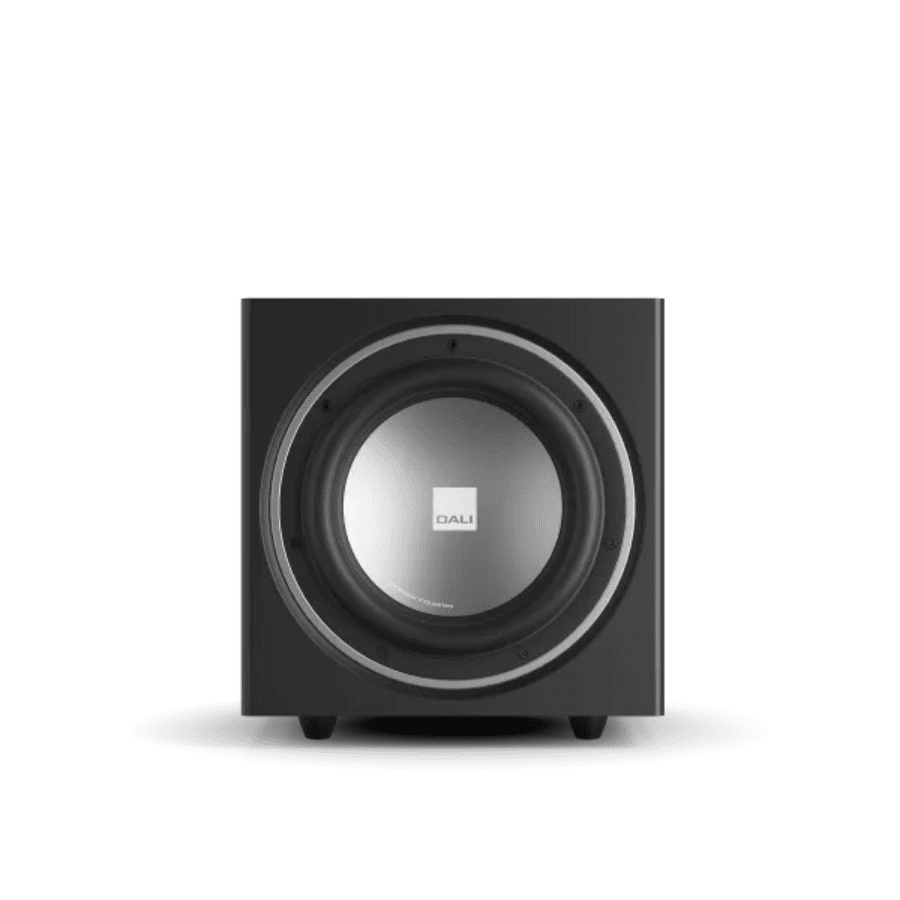

The combination of a 230 mm bass driver, a bass reflex system precisely matched to the driver and the 220 watt digital power amplifier integrated in the subwoofer promises a deep and powerful bass reproduction. The cone of the woofer is made of pure aluminium, which not only makes the cone extremely torsion-resistant and light, but also gives the subwoofer an extremely elegant hi-tech look. The generously dimensioned rubber surround, the heavy magnet system and the massive four-layer voice coil also enable the diaphragm to move in a particularly long stroke – an important prerequisite for vehement air movements, which are further supported by the downward-facing bass reflex port. After all, the comparatively tiny woofer has a lower cut-off frequency of 37 Hertz and a sound pressure level of up to 111 dB.

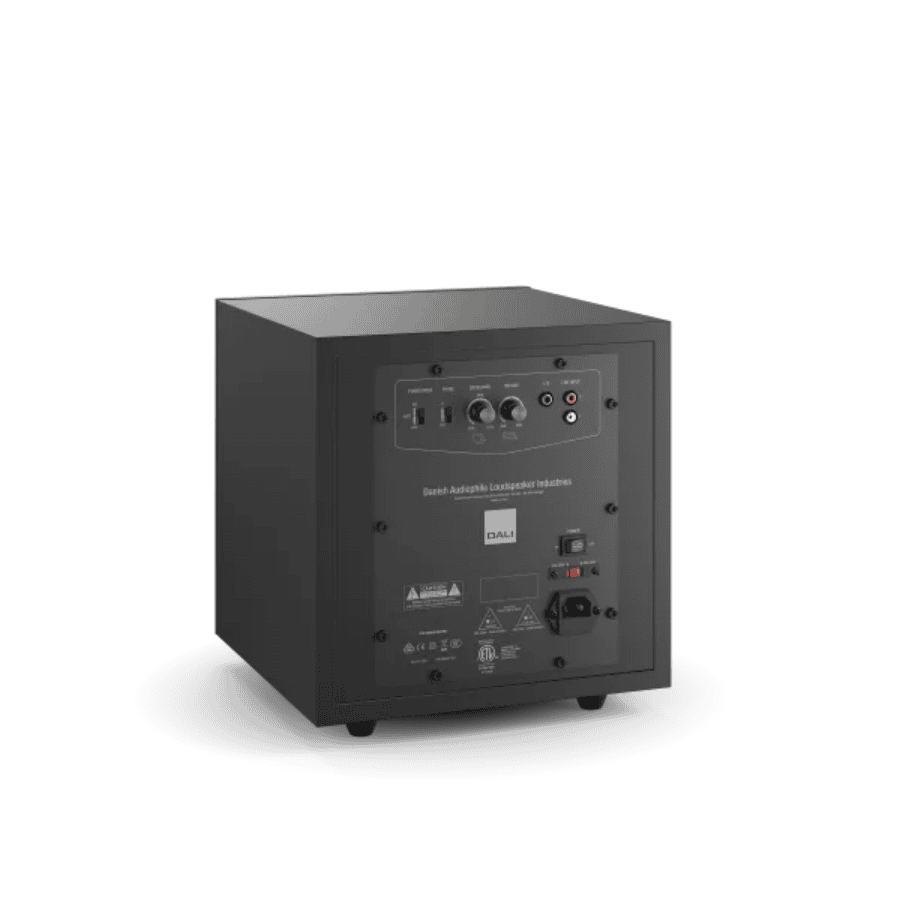

A significant contribution to the high quality of the SUB E-9F is also made by the built-in digital power amplifier. It mobilises 170 watts of continuous and 220 watts of impulse power and can be optimally adjusted to the prevailing acoustic conditions with the integrated controls for volume and upper crossover frequency (control range 40 to 120 hertz) as well as a phase reversal switch. The DALI sub can be controlled either via the LFE output of a home cinema receiver or with a stereo signal.

The DALI SUB E-9 F is available in three different cabinet finishes: high-quality foil surfaces in black ash, light walnut and white. The front panels have a high-gloss black or white finish and contain hidden magnets that can be used to fix the front covers, which are available as optional accessories. Rounded rubber feet give the subwoofer a secure stand and isolate it acoustically from the floor.

Specifications :

Frequency range (+/- 3 dB) [Hz]: 37 – 200

Maximum sound pressure level [dB]: 111

Crossover frequencies [Hz]: 40 – 120

bass-midrange driver / number: 1 x 230 mm ø long excursion

bass-midrange driver, type of cone: aluminium enclosure type: bass reflex bass reflex tuning frequency [Hz]: 39.0

Maximum amplifier power [RMS Watt]: 220

Amplifier continuous power [RMS Watt]: 170

Input impedance [Ω]: 25k

Inputs: Mono (LFE) / Cinch / Stereo (low-pass filtered) Magnetic shielding: No

Recommended placement: floorstanding Recommended wall distance [cm]: 10 – 30

Functions: Crossover frequency / phase switch / standby (auto power on) on/off switch & volume (level) Maximum power consumption [watts]: 250

Maximum dimensions with base and cover (HxWxD) [mm]: 307 x 288 x 311

Weight [kg]: 11
