Description

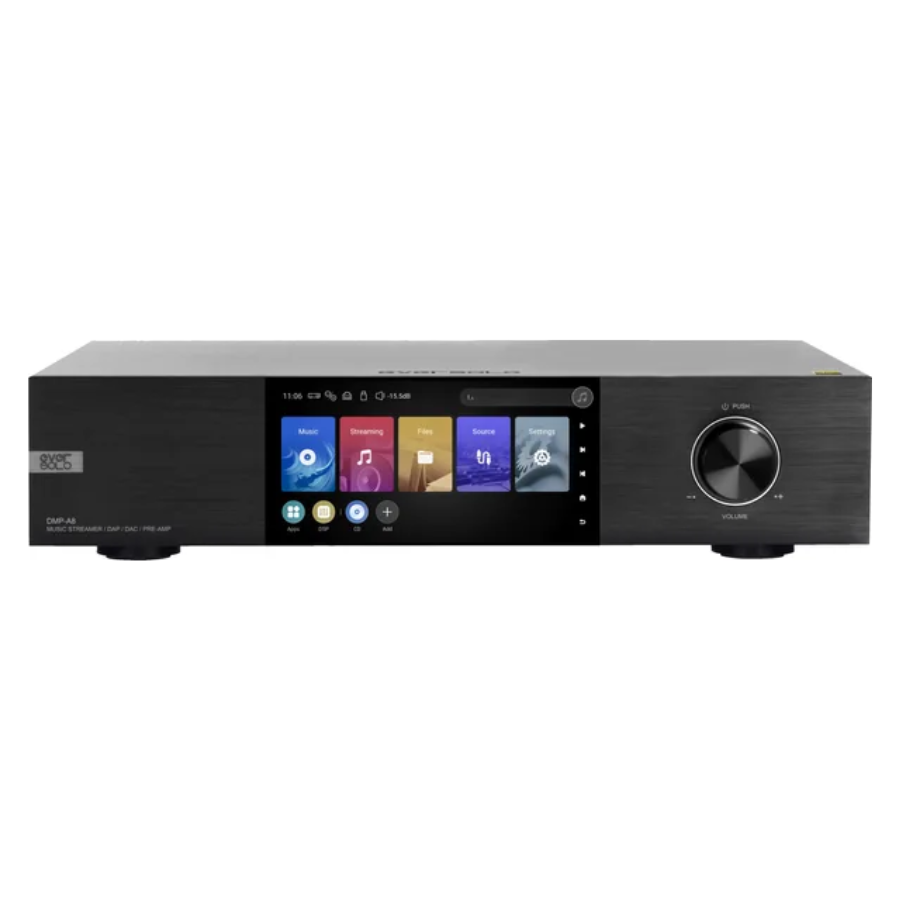

Eversolo DMP-A8 : Streamer/DAC/Preamplifier
-
balanced R2R Analogue Volume Control.
-
RCA and Fully Balanced XLR Analogue Inputs.
-
AKM Velvet Sound (Verita) DAC – AK4499EX & AK4191EQ
-
Linear & Digital Dual Power Supplies.
-
EOS Audio Engine for Direct/Native Audio Passthrough.
-
HDMI eARC/ARC In (selectable).
-
HDMI-IIS Out (I2S).
-
12v Trigger Out.
-
Full DSP Processor with individual configuration profiles for your source of choice (Internal Player, Bluetooth 5.0, USB, Optical 1 & 2, Coax 1 & 2, eARC/ARC).
-
All digital sources/inputs can be routed to the HDMI-IIS (I2S) Digital Output.
-
Dual high-precision Accusilicon AS318-B femtosecond clocks.
Specifications
| Model | EVERSOLO DMP-A8 |
|---|---|
| Display | 6″ LCD touchscreen |
| Internal Memory | 4GDDR4 +64GeMMC |
| DAC | AK4191EQ + AK4499EX – Velvet Sound Verita |
| Audio Processor | XMOS XU316 |
| Op-amp Chip | OPA1612 |
| Clocking Architecture | Dual Femto Clocks – Ultra Low-Phase Noise High Precision Accusilicon Clocks |
| Power Supply | High-quality, low-noise linear + digital dual power supply |
| SSD | Support M.2 NVME 3.0 2280 protocol, up to 4TB (SSD isn’t included). |
| USB-A Port | USB 3.0*2 |
| Ethernet | RJ-45(10/100/1000Mbps) |
| WiFi | WiFi 2.4G+5G dual band |
| Playback and DAC Decoding | Support up to stereo DSD512, PCM 768KHz 32Bit, MQA |
| Music Service | Tidal, Qobuz, Spotify Connect, Highresaudio, Amazon Music, Deezer, Radio Paradise, WebDAV, UPnP |
| Streaming | Air Play, DLNA, Tidal Connect etc., Bluetooth Audio Input |
| Bluetooth BT | 5.0, support SBC / AAC / aptX / aptX LL / aptX HD / LDAC |
| USB-B Audio Input | Supports Windows (10, 11), Android, IOS. Support up to stereo DSD512, PCM 768KHz 32Bit. |
| Optical/Coaxial Audio Input | Support up to stereo PCM 192KHz 24Bit, Dop64 |
| HDMI ARC | Support up to stereo PCM 192KHz 24Bit |
| Analog preamp audio input | XLR(Balanced)*1 +RCA(Unbal), Maximum Gain +10dB – Full R2R Topology |
| USB Audio Output | Support up to stereo DSD512PCM 768KHz 32Bit |
| IIS Output | Support up to stereo DSD512, PCM 768KHz 32Bit |
| Optical/Coaxial Audio Output | Support up to stereo PCM 192KHz 24Bit, Dop64 |
| Analog Audio Output | Preamp Audio Output: XLR(Balanced) +RCA(UnBalanced) – Full R2R Topology |
| XLR Output Audio Characteristics |
|
| RCA Output Audio Characteristics |
|
| Control Method |
|
| Dual PSU | AC 110~240V 50/60Hz – EverSolo Dual ULN PSU |
| Rated Power | 16W |
| Dimensions | W 388mm*L 248mm* H 90mm |
| Packing List |
|
