Description

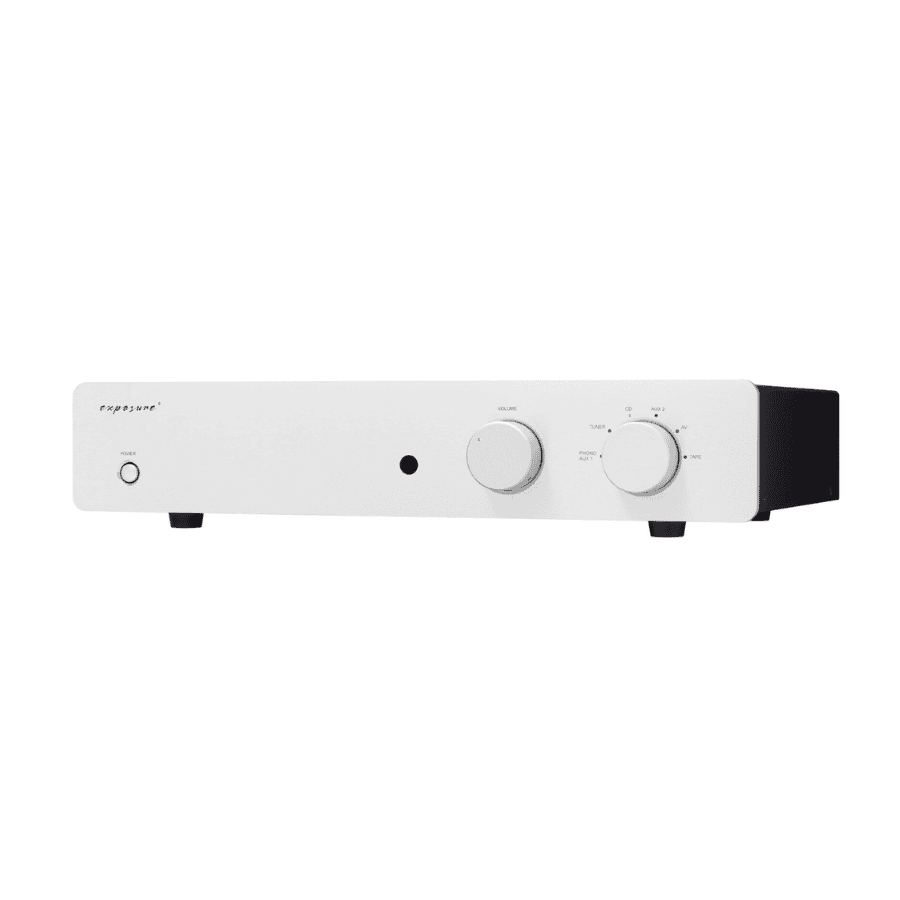

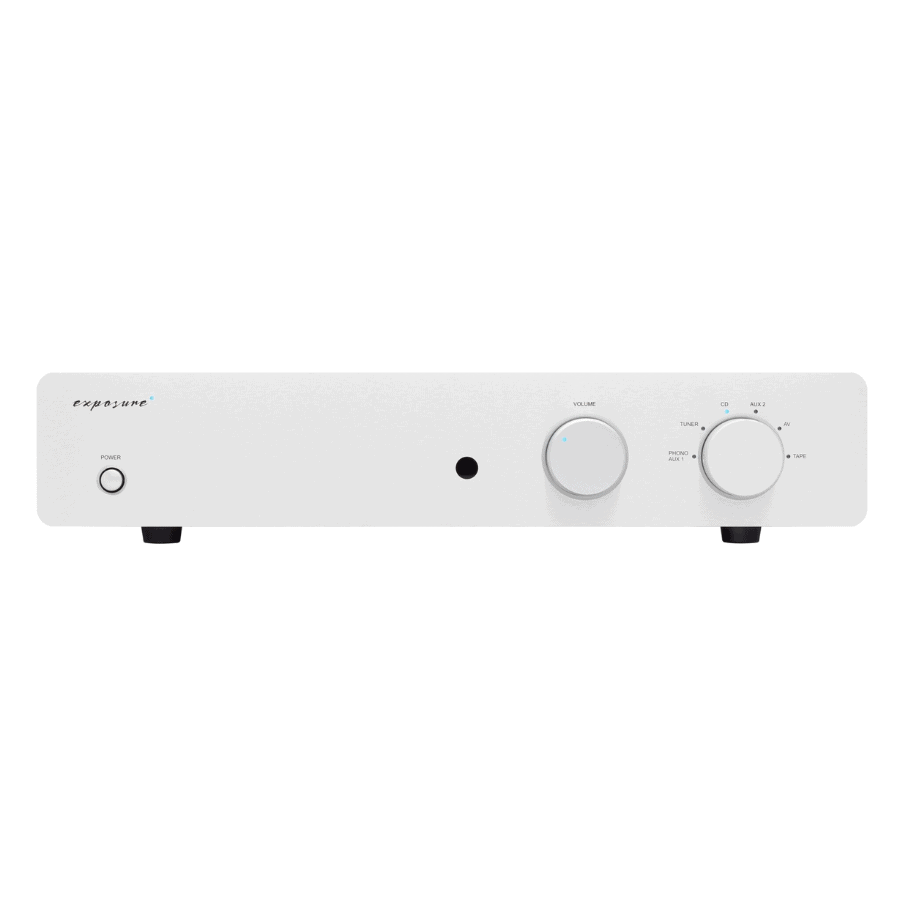

Exposure 5010 Pre : Preamplifier
The 5010 Series is our best performing Pre-Amplifiers and Power Amplifiers yet – using the best quality components and engineering practices, the 5010 Series is designed and built to give you years of listening enjoyment and pleasure.
- Large custom made toroidal power transformer and multiple smoothing capacitors for power supply
- Option to fit a MC or MM phono module OR plug in DAC option
- 6 line inputs or 5 plus optional phono card, 2 main out (RCA), 1 XLR main out and 1 tape output
- Available in Black or Titanium
Specifications :
- Gain (at 1KHz) : +9dB unbalanced output, +15dB balanced output
- Sensitivity : 500mV
- Maximum Output : >9V RMS unbalanced
- Frequency Response : -3dB at 1Hz and 57KHz, ref 1KHz, max volume
- Total Harmonic Distortion : <0.005% at 1.6V RMS output, 1KHz
- Signal to Noise Ratio : >98dB, A weighted, ref 1.6V RMS output, 1KHz
- Channel Separation : >60dB 20Hz to 20Hz (Typically >85dB at 1KHz)
- Outputs : 2 pairs RCA, pre amp output, 1 pair for tape output
- Mains Supply : 110/120V or 220/240V, 50/60Hz (factory set)
- Power Consumption : <25W
- Dimensions – H x W x D : 90mm x 440mm x 300mm (inc knob)
- Nett Weight (unpacked) : 6kg
- Gross Weight (packed) : 8kg
