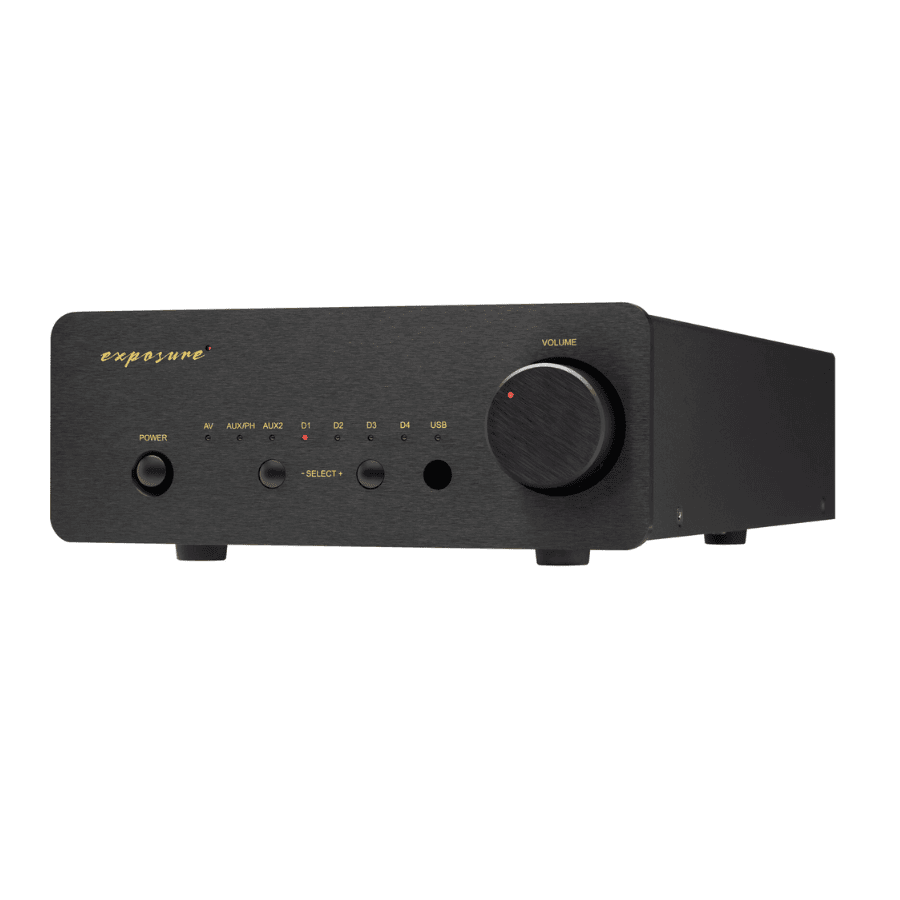

Exposure XM5 : Integrated Amplifier
Exposure’s XM Series offers a similar level of performance to their full size 2010 & 3010 units but within a shoebox sized form factor comprising of a high quality XM5 integrated amplifier, XM7 pre amplifier, and XM9 mono power amplifiers. Along with these superb units, they also provide an XM3 phono amplifier for your turntable, and a dedicated XM HP headphone amplifier to drive demanding headphones with ease.
- Large 200VA custom-made toroidal power transformer
- High quality all aluminium casework and extruded front panel
- High quality resistors & capacitors used in the signal path
- Cascode circuitry utilised for improved power supply immunity
- Toshiba bipolar output transistors for dynamics and performance
- 60 watts per channel into 8 Ohms

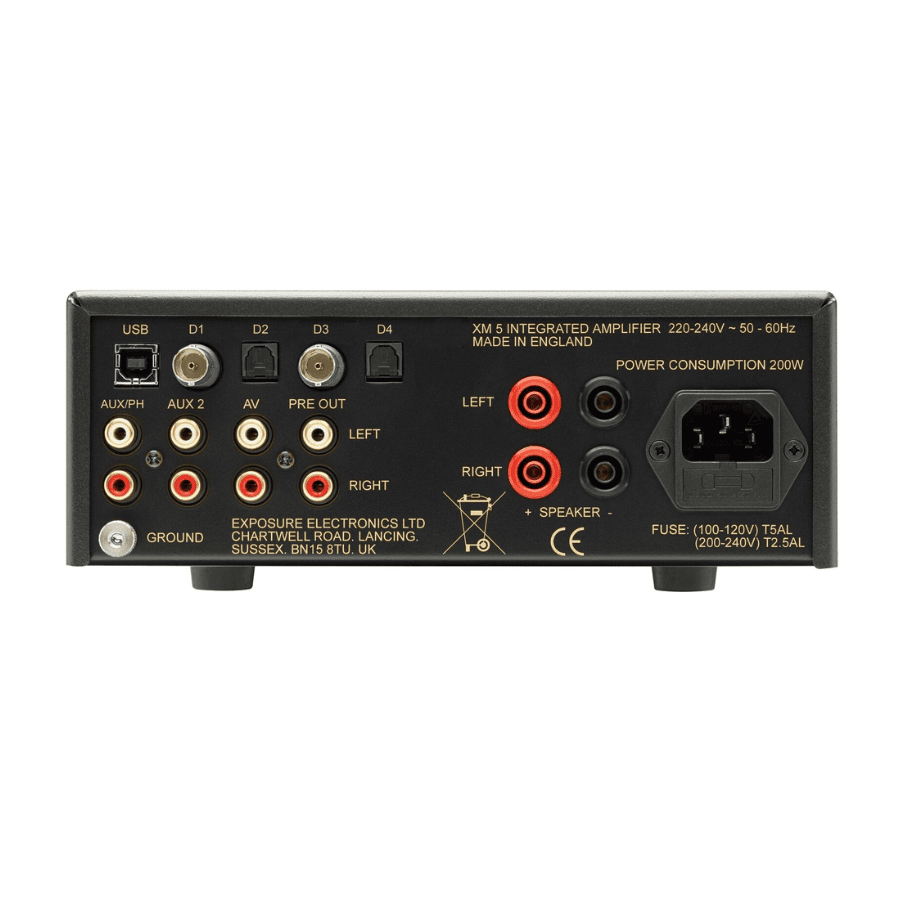

- Moving magnet phono input, fixed level AV input and one line level input
- Two coax ( bnc) and two optical inputs and one class 2 USB input with DSD
- Separate pre-amp output
- Remote control
- Three year guarantee
- Available in black or titanium
Specifications :
Speaker Output Specifications
Power Output (1KHz) : 60 Watts per channel into 8 ohms
Total Harmonic Distortion : <0.01% at 1KHz, rated power
Frequency Response : 20Hz – 20KHz +/- 0.5dB
Channel Separation : >60dB @ 1KHz AUX 2 input open (shorted > 80dB) >40dB @ 20KHz AUX 2 input open (shorted > 63dB)
Pre Amplifier Specifications
Pre Amplifier Output : Gain +12dB
Frequency Response : 20Hz – 20KHz +/- 0.5dB
Total Harmonic Distortion : @ 1KHz: & 1V output : 0.002%
Signal to Noise Ratio ref 1KHz & 1V output : >100dB, A weighted
Channel Separation @ 20KHz : >62dB input shorted > 41dB input open AUX 2 input
Input Specifications
AV input fixed level : 450mV @ 1KHz > 12K ohms S/N > 100dB
AUX/PH input MM : 2.5mV @ 1KHz, 47K ohms S/N 70dB
AUX 2 input Line : 350mV @ 1KHz > 14K ohms S/N > 100dB
SPDIF inputs BNC Coax & Optical : 32 – 192KHz @ 16-24 bits
USB input : Linear PCM 44K1 – 192KHz @ 16-24 bits DSD x64 (DoP) Asynchronous transfer from host
General Specifications
Mains Supply : 110/120V or 220/240V @ 50/60Hz (factory set)
Power Consumption : 200W both channels driven, 8 ohms load
Dimensions (WxHxD) : 218mm x 89mm x 363mm (inc knob)
Net Weight (unpacked) : 5kg
Gross Weight (packed) : 6kg
