Hifi Rose RS520

€ 3.699

Hifi Rose RS520

UGS : ND Catégories : ,

Description

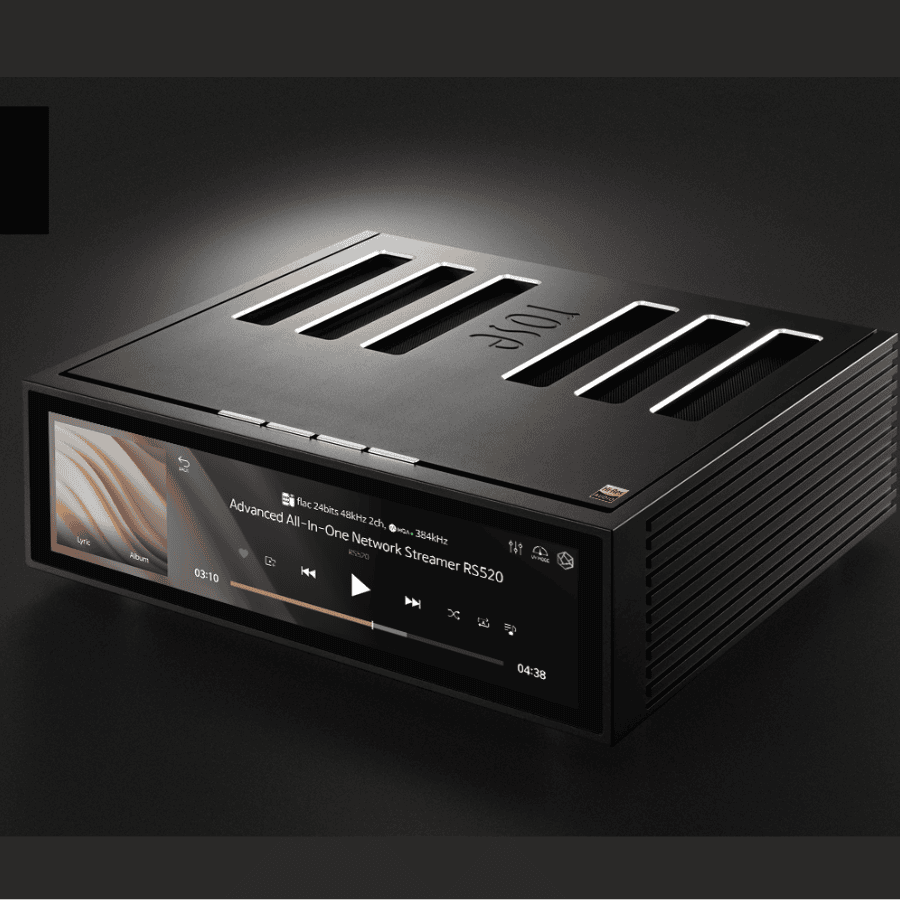

Hifi Rose RS520 :  All in One Streamer,Amplifier/DAC

The RS520 is an all-in-one product with built-in network player, DAC and amplifier.

For DAC and amplifier module, it is equipped with ES9038PRO DAC, the flagship DAC chip of ESS technology and Class AD amplifier module developed by applying new material GaN FET are mounted.

RS520 is an advanced all-in-one network streamer that consolidates the main functions of existing all-in-one streamers into one based on ROSE’s unique design know-how and functions accumulated over many years.

Specifications :

  • OS customised Android 7.1
  • size: width 346mm x depth 328mm x height 127mm
  • weight: 8.1kg
  • display: 12.6″ TFT LCD & capacitive touch screen (eDP)
  • CPU: dual-core corex-A72 up to 1.8GHz/Quad-core Cortex-A53 up to 1.4GHz
  • GPU: mali-T864 GPU, OpenGL ES1.1/2.0/3.0/3.1, Open VG1.1, OpenCL, DX11
  • memory: LPDDR4 4GB
  • DAC:
    • ESS technology, SABRE ES9038PRO
    • resolution: 32bit
    • sampling rate: 8 to 768kHz
    • native DSD sepport: 22.4MHz
  • network connection:
    • network: ethernet 10/100/1000 Base-T, WiFi 802.11ac Dualband USB Wireless LAN Card (Dongle)
    • bluetooth: V4.2 (USB Dongle)
  • audio service:
    • streaming: Airplay/DLNA/Roon Ready/Spotify Connect/Bluetooth
    • music service: Tidal/Qobus/Apple Music/Bugs/Rose Tube/Internet Radio/Rose podcast
  • in/output:
    • audio input: optical x 1, coaxial x 1, line-in x 1, USB DAC x 1, eARC x 1
    • audio output: optical x 1, coaxial x 1, preamp-out x 1
    • video output: HDMI 2.0 x 1
    • media connection:
      • file system – NTFS/exFAT/FAT32
      • network protocol: SMBv1/FTP/WebDay
      • storage interface: USB3.0 x 3, SATA x 1
  • power:
    • input voltage: AC100-240V 50/60Hz
    • power consumption: 150W
    • circuit breaker: 6A thermal circuit breaker
  • SW update via internet, USB OTA, Rose store
  • remote control feature:
    • IR remote control, bluetooth remote control
    • remote app: rose Connect (Android, iOS, PC)
  • in the box:
    • power cable x 1
    • bluetooth remote control x 1
    • AAA battery x 2
    • manual x 1
    • SSD screw x 4

Analogue Audio Specifications

  • output power: 250W + 250W @ 8Ω, 4Ω
  • sensitivity:
    • line in: 2Vrms
    • pre out: 2Vrms
  • power bandwidth:
    • -3dB: 10Hz ~85kHz, 8Ω, 200W
  • THD+N:
    • Pre Out: 0.00033%, 1kHz, 600Ω, 2Vrms
    • speaker: 0.007% @50W, 0.01% @ 100W, 0.1% @250W, x2/8Ω
  • damping factor:
    • 1kHz: 150
  • input impedance: 100KΩ
  • output impedance: 50mΩ
  • frequency response:
    • +1/-3dB: 10Hz~83kHz
  • signal-to-noise ratio:
    • pre out: 124dB, 1kHz, 600Ω, 2Vrms
    • speaker: 109dB, 1kHz, 8Ω, 250W



Brand

Hifi Rose
