Description

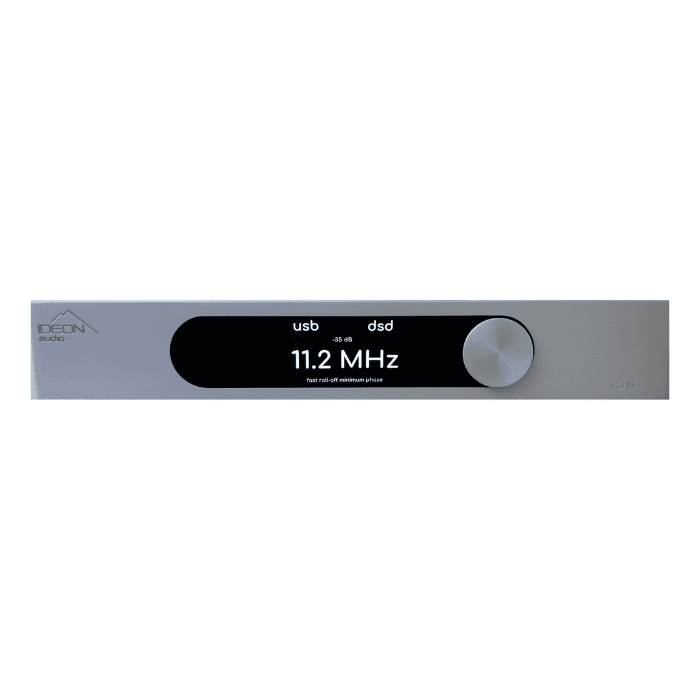

Ideon ION DAC : DAC
The Ideon Audio eos DAC, utilizes trickle-down technologies and R&D gained, from our extensive work mostly with our IΩN DAC and our flagship Absolute Epsilon which has set new standards worldwide.
Many of the IΩN DAC’s innovations and designs are found in the IΩN in its own scale. As with all Ideon offerings, the eos DAC is a fully proprietary design, with audio technologies developed in-house.
A bespoke handcrafted product housing an innovative combination of high-performance design features and best-of-breed quality components.
HyperStream, 8-channels architecture with proprietary, cutting-edge analog stage
- High output impedance at -120 dB SNR, quad current output from DAC
- Cutting edge analog stage, with symmetrical ultra-low noise power supply – in a unique topology
- Low-noise power through, more than 10 different separate power regulators in the circuit.
- Direct coupled output with no capacitors in the output stage.
- In-House fully balanced design throughout.
Specifications :
IΩN DAC
| SUPPORTED FORMATS (INPUT DEPENDENT) | 44.1kHz to 384kHz PCM up to 32 bits , Native DSD (up to 8X DSD) |
| DIGITAL INPUTS | 3x Advanced isolated input module slots (USB, BNC, RCA) |
| XLR BALANCED OUTPUTS (high/med/low/variable selectable by the user) | 8.8 Vrms at 0dB (at high output) |
| RCA OUTPUTS (adjustable as with XLR) | RCA OUTPUTS 4.4 Vrms at 0dB (at high output) |
| THD (A WEIGHTED 20HZ-20KHZ) | < – 110dB on all outputs |
| CHANNEL SEPARATION | >130dB on all outputs |
| SNR (A WEIGHTED 20HZ-20KHZ) | >122dB on all outputs |
| DYNAMIC RANGE | 20HZ TO 20KHZ 135 dB (FS) . 132 dB (AFS) |
| DISPLAY | Custom LCD TFT display |
| DIMENSIONS (W X H X D) | 460 x 80 x 300 mm (18.1 x 3.1 x 11.8 in) |
| WEIGHT | 13kg (~28 lbs) |
IΩN+ Pre-Amp section
SUPPORTED FORMATS (INPUT DEPENDENT)44.1kHz to 384kHz PCM up to 32 bits , Native DSD (up to 8X DSD)DIGITAL INPUTS3x Advanced isolated input module slots (USB, BNC, RCA)XLR BALANCED OUTPUTS 2.2 Vrms at 0dB RCA OUTPUTS 2.2 Vrms at 0dBTHD (A WEIGHTED 20HZ-20KHZ)< – 110dB on all outputsCHANNEL SEPARATION>124dB on all outputsSNR (A WEIGHTED 20HZ-20KHZ)>120dB on all outputsDYNAMIC RANGE20HZ TO 20KHZ 132 dB (FS) . 130 dB (AFS)DISPLAYCustom matrix LED displayDIMENSIONS (W X H X D)460 x 70 x 295 mm ( (18.1 x 2.7 x 11.6 in)WEIGHT10kg (~22 lbs)
