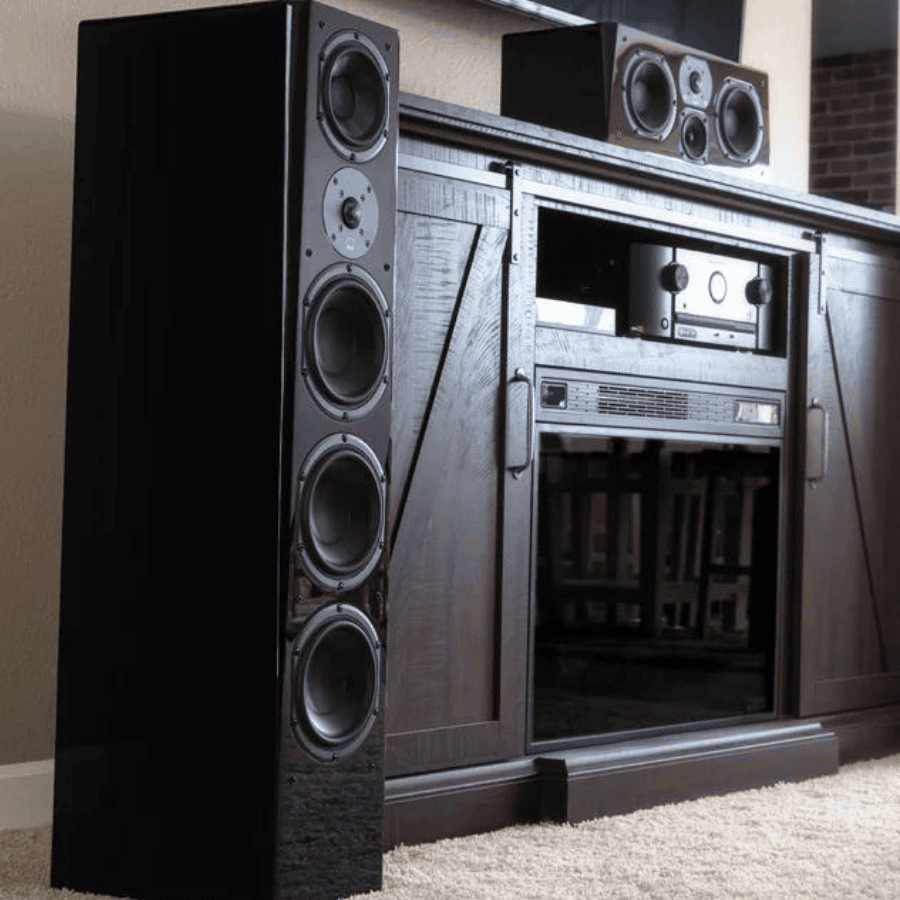

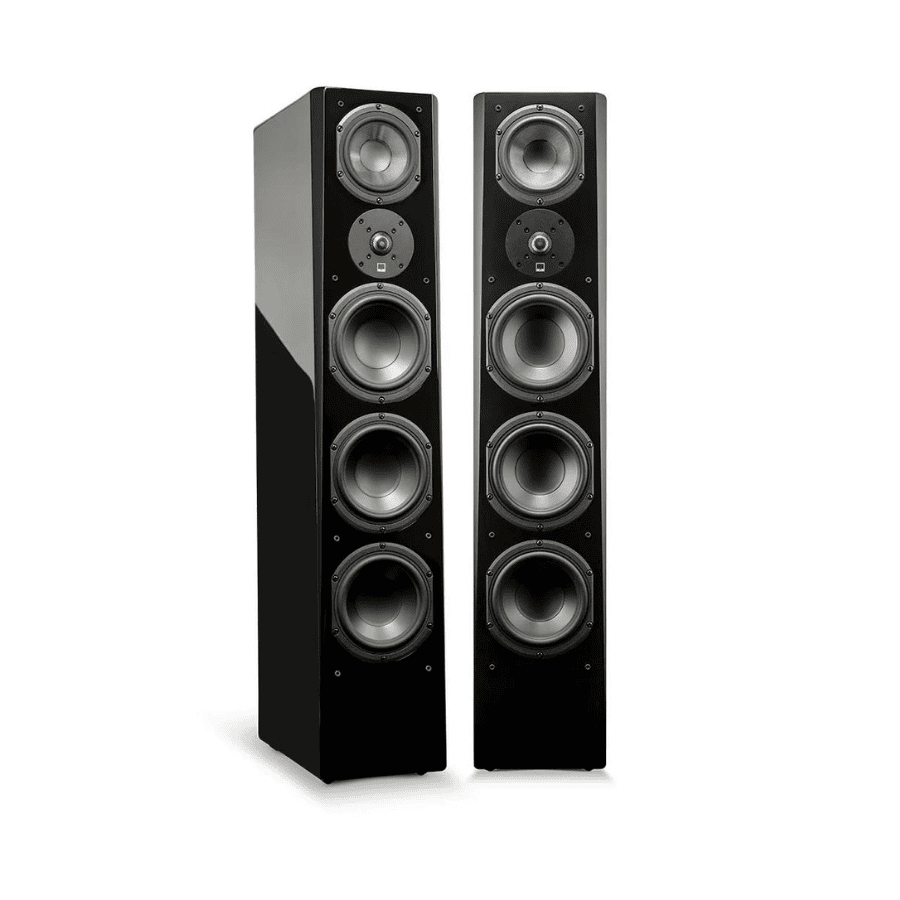

SVS Prime Pinnacle : Speaker
The ultimate expression of what SVS sought to create with the Prime Series loudspeakers is epitomized in Prime Pinnacle. Audiophile refinement and musicality without sacrificing wide dynamic range, deep, effortless bass and all the excitement of a world-class loudspeaker.
SVS acoustic engineers spent more time voicing Prime Pinnacle than any speaker in SVS history, in large part to create a loudspeaker that was equally suited to meet the demands of both discerning audiophiles and hardcore home theater fans. To go even further, Prime Pinnacle’s cabinet design was made to blend seamlessly and sound amazing in any listening environment.
World-class performance in both a two-channel HiFi stereo or an immersive home theater surround sound system, Prime Pinnacle is unrivaled in its class and well-beyond.
Frequency Response / Acoustic Data:
- Rated bandwidth: 29 Hz-25 kHz (±3 dB)
- Nominal impedance: 8 ohms
- Sensitivity: 88 dB (2.83V @ 1 meter full-space, 300-3kHz)
- Recommended amplifier power: 20-300 watts
Speaker Specs:
- Floor Standing Tower Loudspeaker
- Black ash and piano gloss black finish options
- 5-way binding posts
- Triple 2” wide-flared rear-firing ports

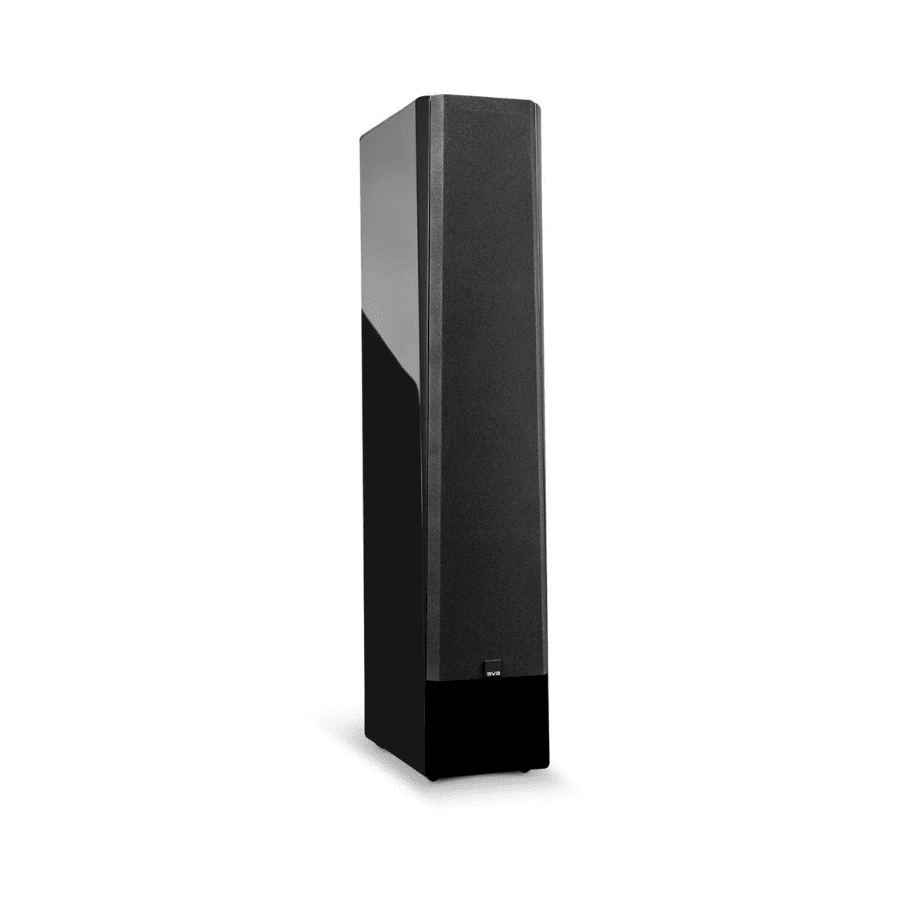

- Cloth grille with pin/cup retention system
- Cabinet Dimensions: 40.5″ (H) X 8″ (W) X 13.4″ (D)
- Overall Dimensions: 41.1″ (H) X 8″ (W) X 13.9″ (D) (includes grille, feet and binding posts)
- Shipped Dimensions: 46.5″ (H) X 14.8″ (W) X 19″ (D)
- Weight Packaged: 66 lbs (29.9 kg)
- Weight Unboxed: 57.1 lbs (25.9 kg)
Driver Specs:
1” Aluminum Dome Tweeter:
- FEA-optimized diffuser for airy and unveiled presentation
- Aluminum dome for exceptional transient response
Triple 6.5” Woofers:
- Long stroke motor and suspension for high output
- Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
- Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
- Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
- Vented voice coil former minimizes air compression artifacts
5.25” Midrange Driver:
- Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond pass band
- Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
- Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
- Vented voice coil former minimizes air compression artifacts
Crossover & Cabinet Specs:
Crossover:
- 3-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards
- 2-piece PCB design reduces component interference
- Tweeter-to-Midrange crossover: 2.1kHz (12 dB/octave slopes)
- Midrange-to-Woofer crossover frequency: 300Hz (12 dB/octave slopes)
Cabinet:
- Separate sealed midrange enclosure with angled bracing diffuses and shifts standing waves beyond the driver pass band, improving sound quality
- Three separate woofer enclosures with optimized port tuning frequencies for smooth and accurate bass response
- Acoustically transparent and FEA optimized grilles minimize diffraction
- Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high frequency response
- FEA-optimized cabinet and angled bracing eliminates resonances and improves cabinet rigidity for acoustically inert enclosure
