Description

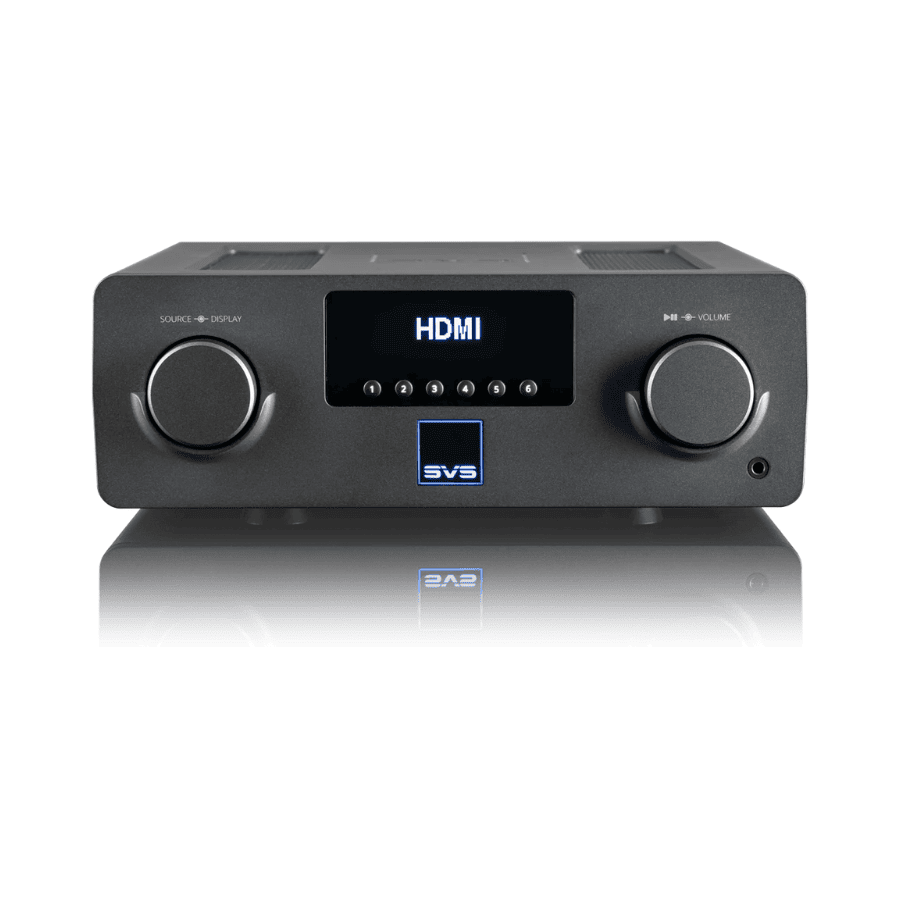

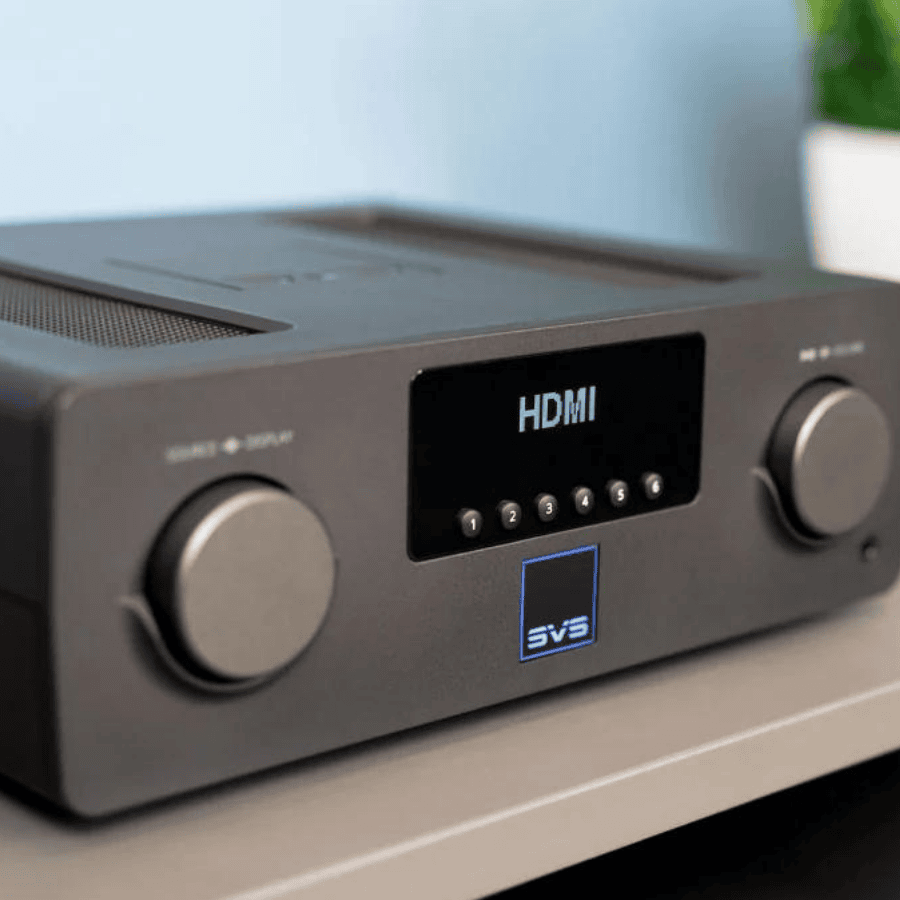

SVS Prime Wireless PRO Soundbase : Integrated Amplifier Wireless
A reimagining of the integrated stereo amplifier for the streaming age, SVS Prime Wireless Pro SoundBase marries audiophile-grade components, effortless power, multiple streaming options, and intuitive control. Simply add speakers for an uncompromised listening experience.
Housed within the compact, high-tech looking enclosure is a robust 300 watt (150 watts per channel) stereo amplifier with 192kHz/24-bit DAC capable of driving any speakers to their full potential with pristine clarity, stunning dynamics, and powerful bass.
Audiophiles will love that Prime Wireless Pro SoundBase streams lossless High-Resolution Audio wirelessly via WiFi, Apple Airplay 2 for iPhones and iOS, and Chromecast for Android phones and other devices. Enjoy the best quality sound from all your streaming services with no compromising. You can also stream via Bluetooth.
It connects directly to your TV via HDMI as a source component in an immersive home theater stereo system. Plus, with line level, optical, 3.5mm AUX, and ethernet, it has inputs for a range of components. And of course, a subwoofer output for deeper, more immersive bass.
Bringing it all together is easy control via the smartphone and desktop app, IR remote, voice commands, and a data rich front panel interface with loads of unique features.
Finally, wireless audio meets the Sound R|Evolution.
Frequency Response / Acoustic Data:
- Frequency Response: 42Hz – 25kHz (±3 dB)
Active Speaker Cabinet Dimensions:
- 295mm (H) X 180mm (W) X 228mm (D)
- 11.61″ (H) X 7.09″ (W) X 8.96″ (D)
Passive Speaker Cabinet Dimensions:
- 295mm (H) X 180mm (W) X 225mm (D)
- 11.61″ (H) X 7.09″ (W) X 8.85″ (D)
Package Dimensions:
- 390mm (H) X 465mm (W) X 296mm (D)
- 15.35″ (H) X 18.31″ (W) X 11.73″ (D)
Weight:
- Active Speaker Weight Unboxed: 12.3 lbs (5.58kg)
- Passive Speaker Weight Unboxed: 11.68 lbs (5.3kg)
- Packaged Weight System Pack: 28.0 lbs (12.7kg)
Driver Specs:
1” Aluminum Dome Tweeter:
- FEA-optimized diffuser for airy and unveiled presentation
- Aluminum dome for exceptional transient response
5.25″ Mid-bass Driver:
- Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
- Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
- Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
- Vented voice coil former minimizes air compression artifacts
Amplifier Specs:
- Dual Class-D Power Amps for Discrete Driver Bi-amplification
- 200 watt (50 watt x 4) RMS Power
- Digital controlled tweeter-to-woofer crossover: 2kHz (12dB/octave slope)
Speaker Cabinet Specs:
- Finish Options: Piano Gloss Black and Piano Gloss White
- 2.36″ wide-flared rear-firing port
- Protective cloth grille with pin/cup retention system
- Elastomer stick-on bumper feet (adds 3mm to height)
- Acoustically transparent and FEA optimized grilles minimize diffraction
- FEA-optimized cabinet and bracing eliminates resonances
- Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high frequency response
Wireless Streaming Options
- DTS Play-Fi – Lossless 192kHz/24-bit via Critical Listening Mode over WiFi
- Apple Airplay 2 for iPhone and iOS Devices, Chromecast for Android phones and Devices: CD Quality
- Bluetooth 5.0 with AAC and aptX
- Spotify Connect
Input Specs:
- HDMI audio input. Supports ARC and eARC
- Left/Right RCA Input: Input Impedance: 20K
- 3.5mm Aux Input: Input Impedance: 20K
- Toslink Optical Input: S/PDIF receiver works at a wide range of sampling frequencies up to 96kHz
- Bluetooth 5.0 with AAC and aptX
- 6 front panel presets for one-touch access to music services and playlists
- Ethernet
- USB service port also for powering wireless accessories: See SoundPath Wireless Audio Adapter
Output Specs:
- Subwoofer Output: 2V MAX – Auto Detecting Low Pass Filter: Activates Low Pass Filter at 80Hz on the speakers when subwoofer detected
- Ethernet
General Specifications:
- 3.15” wide Front Panel OLED display: Displays Source, Artist Name, Song Title, Volume and Rich meta data from Wi-Fi and Bluetooth audio sources
- Switch Mode Power Supply: Auto Switching 100 – 120V / 220 – 240V, 50/60Hz
- Fuse: 15A/250V
- Detachable Power Cord
- IR Remote control and 2 AAA batteries included
- 8 x Elastomer stick-on bumper feet included
- Active-Passive Speaker Interconnect Cable: 3m / 10ft Included
- 15 ft and 20 ft Prime Wireless Speaker System interconnect cables are available upon request. Please call (877.626.5623) or email us for pricing and to place an order.
Warranty:
- Unconditional 2-Year Warranty
