Audio Analogue AAdac

€ 4.750

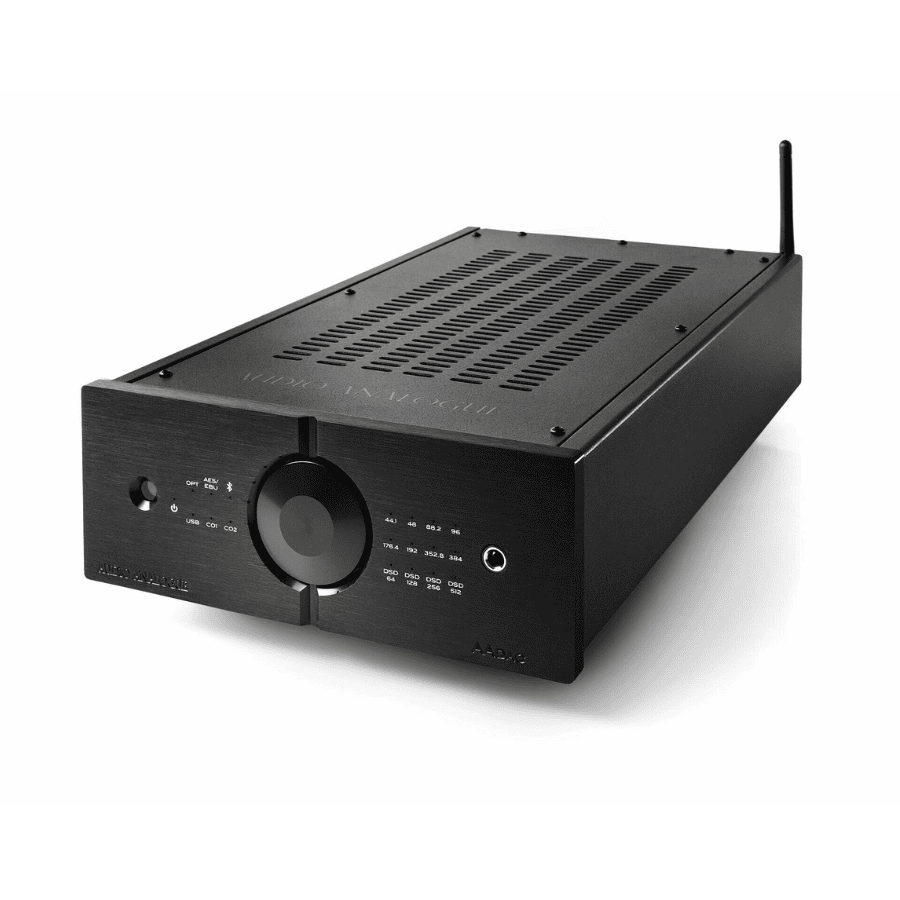

Audio Analogue AAdac

UGS : ND Catégorie :

Description

Audio Analogue AAdac : DAC

AAdac is part of the PureAA line just like AAcento and
AAphono. It is a product that perfectly fits the philosophy of
Audio Analogue: its simple design together with its
extraordinary sound performance, the great care for the
finishes and in the choice of materials and parts makes it a
perfect match for your digital sources.
AAdac has a wide variety of functions and entering the
settings you can adjust the intensity of the LEDs, change the
channel balance, select one of seven different digital filters
and set it in preamp mode.

High performance D/A converter up to 32bit/768Khz using Sabre ES9038. Amanero USB converter up to 32bit/384khz. Native DSD up to 512. 7 different digital filters.

SPDIF, Toslink, AES/EBU digital inputs. High quality Bluetooth aptX® audio wireless input (optional). Separate boards for each stage. Separate power supplies dedicated to digital and analog sections.

Fully balanced output stage with audiograde discrete components to perfectly support ultra-low noise and very low distortion digital stage.

Drivers to use AAdac connected to a Windows PC can be downloaded at the following link: http://amanero.com/drivers.htm. No MAC driver is required. On request, it can be supplied with SW compatible with Linux based devices.

Equipped with a solid aluminum remote control, it is available in natural aluminum or satin black.

Specifications :

Channels
2
Output level
2.9 µV (22 Hz ÷ 20 kHz )
Output level(a weighted)
2.1 µV
Balanced output voltage
1kHz/0dB
3.35 VRMS
Unbalanced output voltage
1kHz/0dB
3.35 VRMS
Dynamic range(A weight)
124 dB
THD+N
1dB, 1kHz, FS = 48 kHz
-108 dB
ENOB
17.65 BIT
Standby power consumption
230VAC
0.7W
Dimensions
HxWxD
100x220x390 mm
Weight
5.5 Kg

Brand

Audio Analogue
