Description

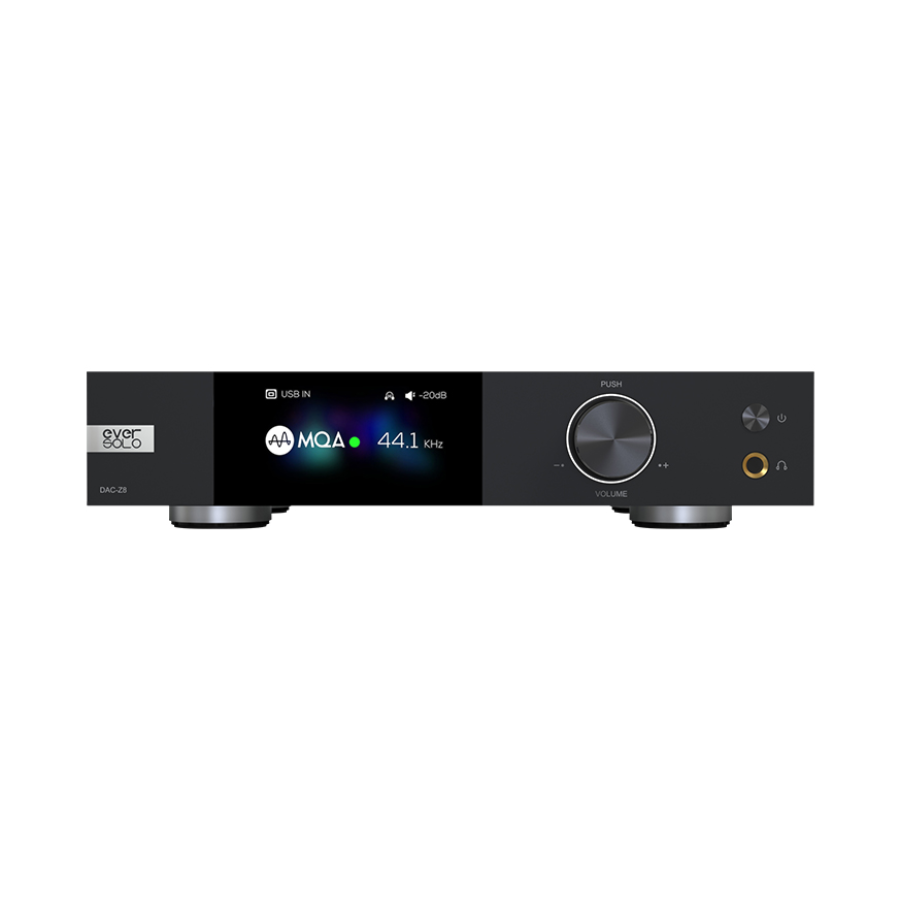

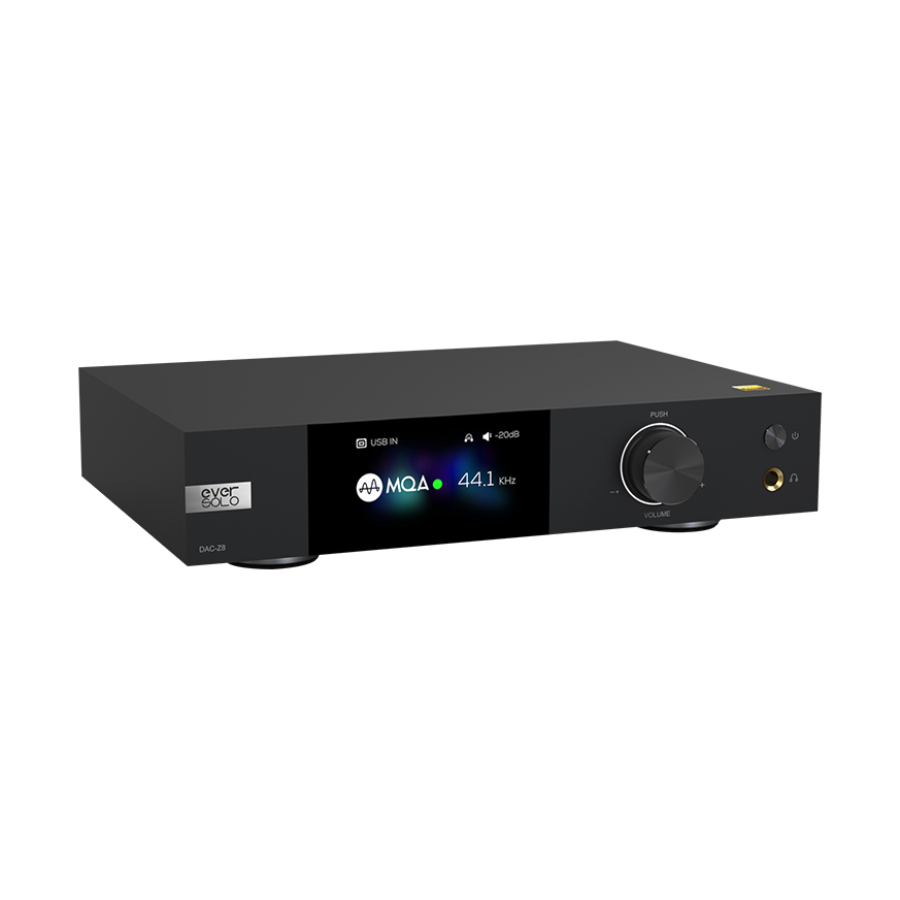

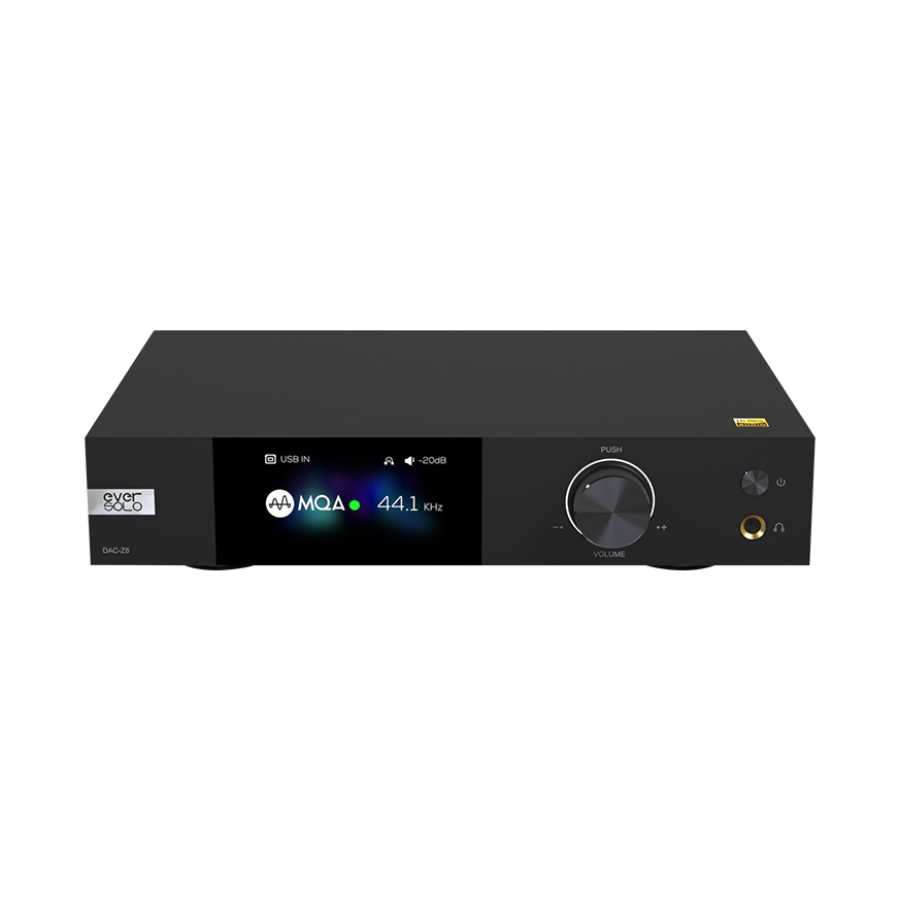

DAC-Z8 : DAC
DAC-Z8 is a compact audio decoder with excellent workmanship and high per- formance. Coming with the 3rd integration of XMOS 316 and ESS flagship ES9038 Pro DAC chip, the decoding formats support up to DSD512, PCM 768Khz@32Bit and MQA full decoding. It has exceptional sound quality, good preamp performance and strong headphone driving force. Rich inputs make the
device be a good partner of high end headphones and stereo speakers
Specifications :
Model
EverSolo DAC-Z8
Display Screen
3-inch LCD Screen
Chassis
Aviation aluminum alloy
DAC
ES 9038Pro
Audio Processor
XMOS XU316
OPA Chip
OPA1612*10
Power Supply
Low noise switching power supply
Bluetooth Audio Input
Qualcomm QCC5125 Bluetooth module, BT5.0 Support SBC/AAC
Bluetooth protocol
Bluetooth protocol
USB-B DAC Input
Compatible with Windows (7, 10), Mac, Android and IOS
Up to stereo DSD512, PCM 768KHz 32Bit and MQA
Up to stereo DSD512, PCM 768KHz 32Bit and MQA
USB-C DAC Input
Compatible with Windows (7, 10), Mac, Android and IOS
Up to stereo DSD512, PCM 768KHz 32Bit, MQA
Up to stereo DSD512, PCM 768KHz 32Bit, MQA
Optical Audio Input
Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA
Coaxial Audio Input
Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA
Analog Audio Output
Preamp output: XLR (balanced), RCA;
Headphone amp output: 6.35mm single-ended
Headphone amp output: 6.35mm single-ended
USB Port
USB2.0*1（only for firmware upgrade）
Control Methods
Remote control, mobile APP control and knob control
Headphone Impedance
16-300Ω （low gain mode:16-32Ω/high gain mode: 32-300Ω）
XLR Audio Characteristics
Output level(Vrms): 4.1Vrms@0dBFS
THD+N@A-wt: 0.000062%@1kHz（-124dB@1kHz）
THD+N@No-wt：0.000069%@1kHz（-123dB@1kHz）
Noise@No-wt: <1.2uVrms
SNR @No-wt: 133dB@1kHz
Frequency response: 20Hz-20kHz(±0.1dB)
Crosstalk: -130dB@1kHz
DNR @No-wt: 133dB@1kHz
THD+N@A-wt: 0.000062%@1kHz（-124dB@1kHz）
THD+N@No-wt：0.000069%@1kHz（-123dB@1kHz）
Noise@No-wt: <1.2uVrms
SNR @No-wt: 133dB@1kHz
Frequency response: 20Hz-20kHz(±0.1dB)
Crosstalk: -130dB@1kHz
DNR @No-wt: 133dB@1kHz
RCA Audio Characteristics
Output level (Vrms): 2.3Vrms@0dBFS
THD+N@A-wt: 0.000086%@1kHz(-121dB@1kHz)
THD+)@No-wt: 0.000097%@1kHz(-120dB@1kHz)
Noise @No-wt: <1.5uVrms
SNR @No-wt: 126dB@1kHz
Frequency response: 20Hz-20kHz(±0.1dB)
Crosstalk: -123dB@1kHz
DNR@No-wt: 126dB@1kHz
THD+N@A-wt: 0.000086%@1kHz(-121dB@1kHz)
THD+)@No-wt: 0.000097%@1kHz(-120dB@1kHz)
Noise @No-wt: <1.5uVrms
SNR @No-wt: 126dB@1kHz
Frequency response: 20Hz-20kHz(±0.1dB)
Crosstalk: -123dB@1kHz
DNR@No-wt: 126dB@1kHz
Headphone
(low gain mode)
(low gain mode)
Output level(Vrms): 1.2Vrms@0dBFS
Maximum undistorted power: 45 mW@32Ω
THD+N@A-wt: 0.00015%@1kHz(-116dB@1kHz)
THD+N@No-wt: 0.00018%@1kHz(-115dB@1kHz)
Noise @No-wt: <2uVrms
SNR@No-wt: 124dB@1kHz
Frequency response: 20Hz-20kHz(±0.1dB)
DNR @No-wt: 119dB@1kHz
Maximum undistorted power: 45 mW@32Ω
THD+N@A-wt: 0.00015%@1kHz(-116dB@1kHz)
THD+N@No-wt: 0.00018%@1kHz(-115dB@1kHz)
Noise @No-wt: <2uVrms
SNR@No-wt: 124dB@1kHz
Frequency response: 20Hz-20kHz(±0.1dB)
DNR @No-wt: 119dB@1kHz
Headphone
(high gain mode)
(high gain mode)
Output level(Vrms): 2.8Vrms@0dBFS
Maximum undistorted power: 26 mW@300Ω
THD+N@A-wt: 0.00016%@1kHz(-116dB@1kHz)
THD+N@No-wt: 0.00016%@1kHz(-116dB@1kHz)
Noise@No-wt: <2uVrms
SNR@No-wt: 124dB@1kHz
Frequency response): 20Hz-20kHz(±0.1dB)
DNR @No-wt: 124dB@1kHz
Maximum undistorted power: 26 mW@300Ω
THD+N@A-wt: 0.00016%@1kHz(-116dB@1kHz)
THD+N@No-wt: 0.00016%@1kHz(-116dB@1kHz)
Noise@No-wt: <2uVrms
SNR@No-wt: 124dB@1kHz
Frequency response): 20Hz-20kHz(±0.1dB)
DNR @No-wt: 124dB@1kHz
Power Input
AC 110~240V 50/60Hz
Rated Power
9W
Dimensions
270mm(W) * 187mm(D)* 50mm(H)
Packing List
Remote control*1, power cable*1, USB cable*1, product manual*1
