Description

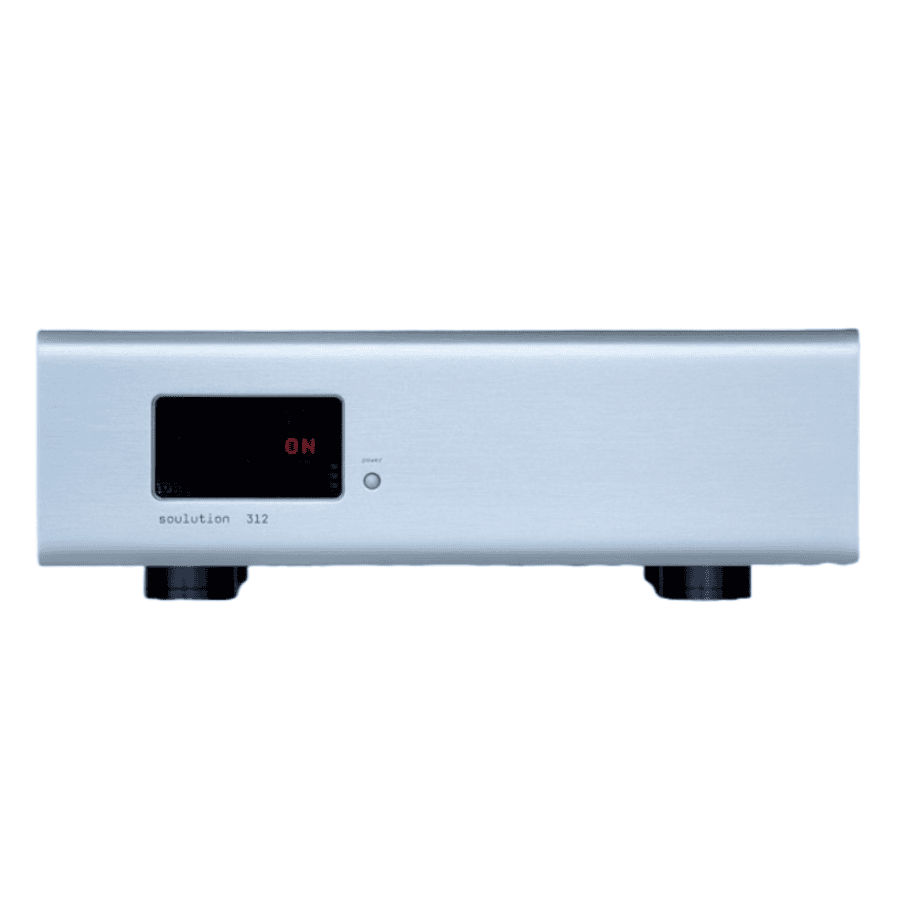

Soulution 312 : Stereo Power vAmplifiermplifier
More power reserves make the 312 stereo amplifier sound even more dynamic than its predecessor.
Highlights
New power supply
Four new cutting-edge switched-mode power supplies modules deliver 1,200 VA of continuous power for the power amplfier section with a peak power capability of up to 4’200 VA for more than 5 seconds. They feature high performance filtering at the input and output, and high speed soulution voltage regulators to deliver considerably more stable power than any conventional, transformer-based technology.
Power amplifier
The amplification circuit of the 312 is based on the technology used in our Series 5 amplifiers. Current amplification is done in three stages, each with a narrow, almost linear operating range.
Operation
The 312 stereo amplifier is operated via its front panel button. Multiple configuration functions allow optimisation of the entire audio system.
Specifications
Shortcode
| Mains | 100– 240 V (50 – 60 Hz) |
| Power consumption | < 0.5 W Standby idle 110W |
| Analog inputs | 1 × balanced (XLR) |
| Input impedance | 2 kΩ balanced (XLR) |
| LINK (remote turn-on) | 2 x phone jack (3.5mm) |
| Loudspeaker | 2 pair loudspeaker binding posts |
| Gain | + 26 dB |
| Power output | 100 W @ 8 Ω 200 W @ 4 Ω 400 W @ 2 Ω (< 5 sec.) |
| Output current max | 30 A |
| Frequency response (– 3 dB) | 0 – 800 kHz |
| Phase shift @ 20kHz | < – 3° |
| THD | < 0.0004% |
| Spot noise (input related) | < -140 dBV/√Hz |
| Damping factor | > 5000 |
| Dimensions (WxDxH) | 430 x 490 x 142 mm |
| Weight | ~17 kg |
