Description
SPEC RMP-DAC3EX ; DAC
RMP-DAC3EX-S was also released in a limited quantity.
To reproduce realistic sound, an amplifier with excellent drive capability and a source device that reproduces tone color information without omission are required. RMP-DAC3EX reproduces a timbre signal full of musicality.
The sound concept of RMP-DAC3EX
« Realistic audio is the most beautiful ».
This is why we strive for the most musicality in our audio equipment.
One of the most important factors for achieving realistic audio reproduction is « realistic tonality » of musical instruments .The violin must sound like a violin, and the oboe must sound like an oboe in order to faithfully convey the musical expression contained in the « performance. »
A DAC is a device that reconverts the digital signal into the analog signal,
In order to reconvert minute signals into fresh analog, the DAC3 has a separated power supply. The power supply, which is free from the vibration of the transformer and has excellent « musical expressiveness », surely conveys the musicality of the performer.
The wooden panel attached to the bottom is made of the same spruce material as the top plate of a violin. Spruce is a relatively soft material that vibrates with music signals to reproduce a rich tone and energy.
In addition, in DAC3EX, we have adopted a new shape and structure of a LEG. The structure in which HICKORY is embedded in the groove in the center of MAPLE optimally supports the main body chassis.
The ground surface is spherical, and by supporting the whole cabinet with points of hickory, we have created “the structure of the body that plays realistic music ». The DAC3 is also built as an instrument.
Specifications :

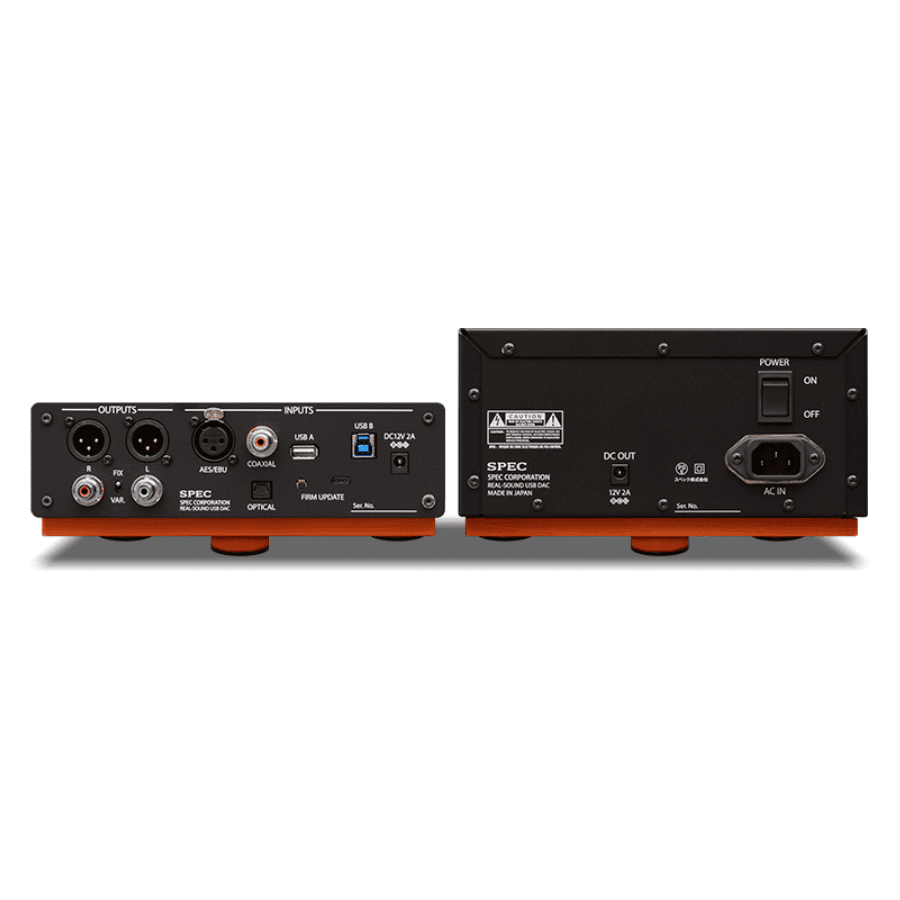

| Input terminals (one system per terminal) | ||
|---|---|---|
| AES/EBU | MAX PCM 24Bit/192kHz | |
| COAXIAL | MAX PCM 24Bit/192kHz | |
| OPTICAL | MAX PCM 24BIT/192kHz | |
| USB B | MAX PCM 32Bit 384kHz, DSD Native 256, DoP 128 (Computer or smartphone as input source with an OTG cable) |
|
| USB A | MAX PCM 32Bit 384kHz, DSD Native 256, DoP 128 (Computer or smartphone as input source with an OTG cable) |
|
| Output terminals | ||
| Balanced XLR | MAX 4.6 Vrms | |
| Unbalanced RCA | MAX 2.3 Vrms | |
| Others | ||
| External dimensions | Main body: 215mm (W) × 82mm (H) × 299mm (D) (terminals included) Power supply: 215mm (W) × 122mm (H) × 273mm (D) |
|
| Power supply voltage | AC110V120V 220V 230V 240V | |
| Power consumption | 30W | |
| Mass | Main body 3.0kg, power supply 4.0kg | |
