Description

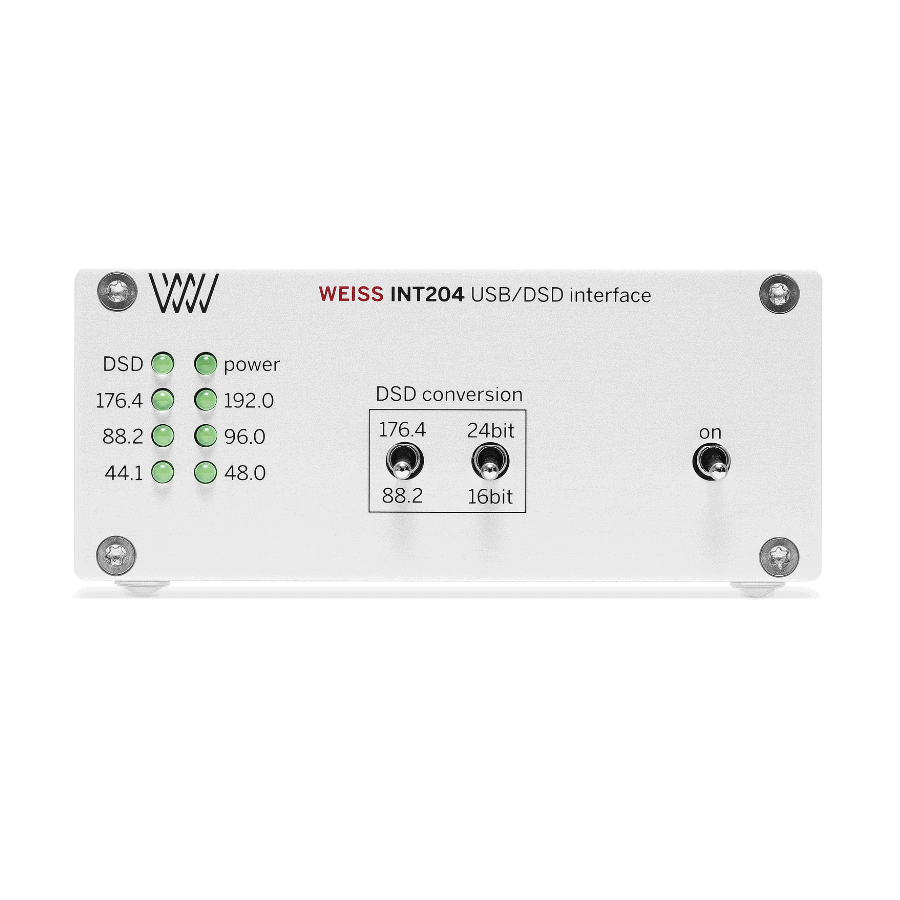

Weiss INT204 : Digital Interface Converter
The INT204 is a stereo, asynchronous USB to AES/EBU interface with the capability to convert DSD data to PCM. All sampling rates up to 192kHz are supported.
Features:-
- •Digital input via asynchronous USB
- •Digital outputs on XLR, RCA and BNC connectors
- •Sampling frequencies up to 192kHz and DSD64
- •DSD to PCM conversion with selectable sampling rate and word length
- •Display for sampling frequency and DSD format
- •External Power supply
- •USB input galvanically isolated
- •Works with Windows or OSX
Please Note:
The conversion of DSD signals to PCM before doing the D/A Conversion has an advantage over a « native » DSD D/A Converter in that the analogue output filter after the PCM D/A stage is of lower order and hence sonically transparent compared to the analogue filter, which is necessary in a « native » DSD D/A Converter. Please see « PDF Downloads » for further information.
- Digital input via asynchronous USB
- Digital outputs on XLR, RCA and BNC connectors
- Sampling frequencies up to 192kHz and DSD64
- DSD to PCM conversion with selectable sampling rate and wordlength
- Display for sampling frequency and DSD format
- External Power supply
- USB input galvanically isolated
- Works withWindows or OSE
Digital Input:
1 USB type B connector
Digital Outputs:
1 BNC connector
1 RCA connector
1 XLR connector
1 Word-length up to 24 Bits
Supported sampling frequencies: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Supported sampling frequencies:
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz, DSD64, DSD128
DSP algorithms
Conversion from DS64 or DSD128 to PCM at 88.2 kHz or 176.4 kHz and 16 Bits or 24 Bits
Conversion from 352.8kHz to 176.4kHz and 384kHz to 192kHz
IR controlled volume control with dithering for optimum audio quality
Dimensions (DxWxH):
16.5cm x 10.5cm x 4.4cm
